Fluid Rotary Joints Combined Slip Ring Manufacture In China - China

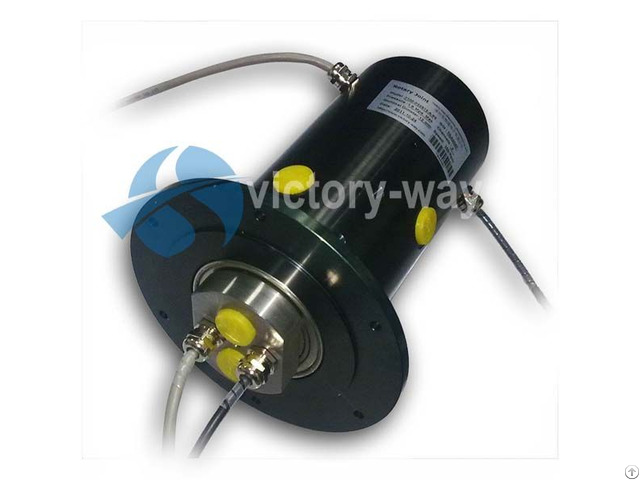

HS-FA2X1/2-S24-SF hybrid slip ring is designed to setup at the end of shaft or side of the machine, fit to pass fluid +signal or low current power.

It is set in the body of rotary joint, the wire of rotor will lead out from the center.

Stator side has flanges for setup.

A.

Feature:

1) High quality bearing on both sides of shaft for smoothly operating;

2) No need to maintain;

3) High quality sealing materials for long life circle;

4) Special shaft provides an excellent wear resistance;

5) Al, Bass, stainless steel body for option;

6) Specially designed leak detection holes;

7) Stator side has flanges for setup.

B.

Technical spec:

Speed: 200Rpm

Operate temperature: -30～90℃

protect degree: IP65

Housing: Al alloy Part A: (Electornic Slip Rings)

Channels: 12 rings(for signal)

Operation Voltage: 0~240VAC/DC

Current: 2A/Ring

Contact material: Precious Metal

Electric Noise: Max.

40m Ω

Dielectric strength: 500VAC@50Hz, 60s

Insulation resistance: 500MΩ @600VDC Part B: (Rotary Joint)

Channels: 2 Ways

Pressure: 1.6Mpa Max

Media: compressed air/ vacuum Our products are widely used in: Security, Factory Automation, Electric Instrumentation, Medical, Aerospace, Marine, Civil and Military Fields.

Such as: Crane, Giant Wheel, Cotton Picker, Medical Equipment, Detector, Rotary Tables, Robots, Strander, Webcam, Automatic Revolving Door, Exhibit / Display Equipment, Food Manufacturing Machine, Packaging Machine, Amusement Equipment, Irrigation Machine, Heated Rollers etc.

More product information welcome to visit our website.
