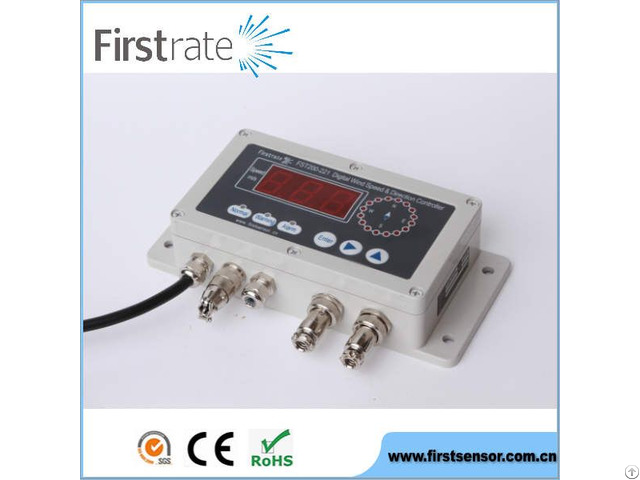

Fst200 221 Digital Wind Speed And Direction Controller - China

1 - Product Description:

Digital Wind Speed & Direction Controller micro controller based development, used to measure the instantaneous wind speed and direction and the mean wind speed and direction, with a display, limit alarm and data communication functions.

the design has a strong anti-RF, anti-electromagnetic interference protection circuit, with good reliability, high precision display advantages.

Used in factories, power, ports, factories, mines, wind turbines and other large machinery and equipment to monitor wind speed and direction.

2 - Technical Parameters Project Parameter

Technical

Index Testing range Wind speed: 0-50m/s, Wind direction: 0-360° Display resolution Wind speed : ±0.1m/s, Wind direction: ±5° Display error Wind speed : 3%FS, Wind direction: ±22.5° Signal input (Optional) Wind speed: Voltage: (0-5/10V), Current : (4-20mA), Pulse Wind direction: Voltage: (0-5/10V), Current : (4-20mA) Power supply 12~30VDC, 110VAC, 220VAC External supply for sensor 12VDC or 24VDC Contact capacity 2set Relay contact output, 10A/220VAC Wind speed alarm control Pre-alarm Relay 1 action, terminals No1, COM1 connection Normal NC1, COM1 connection Alarm Relay 1 action, terminals No1, COM1 connection Normal NC2, COM1 connection Relay 2 action, terminals No2, COM2 connection Normal NC2, COM2 connection Buzzer, promoting the sound output Alarm: Red LED twinkle, the buzzer ring continuously, Relay contact action Analog output Iout1, Iout2 4~20mA current loop output, set the wind speed and direction

corresponding to the linear range (less than 500 ohm load); Communication RS485 digital communication output Working Environment Temperature: -20°C~+50 degree Humidity ≤80%RH
