High Precision Single Axis Tilt Sensor Canopen Output - China

ER-TS-2185CA Features:

1 - Single axis tilt monitoring;

2 - Full range accuracy 0.005°, resolution 0.0007°;

3 - Output frequency 5~100HZ (optional).

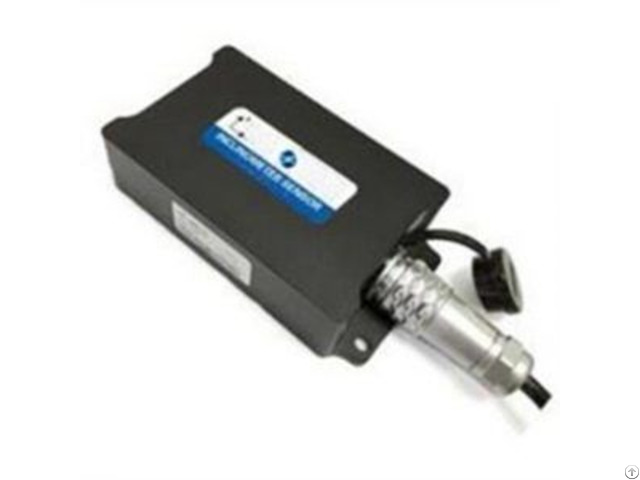

Introduction It is a high-precision CANopen single-axis inclination sensor for industrial field control.

It adopts industry standard isolator CAN transceiver with resolution of 0.0008°, accuracy of 0.005°, and temperature drift of 0.0005°/℃, which is a real industrial-grade product.

It has a built-in high-precision temperature sensor, which can correct the temperature drift of the sensor according to the change of the built-in temperature sensor to ensure the high repeatability of the product regardless of low temperature or high temperature environment.

The output response frequency standard is up to 100Hz, which is suitable for various harsh working environments.

Features Single axis tilt monitoring Full range accuracy 0.005°, resolution 0.0007° Output frequency 5~100HZ (optional) Wide-voltage input DC 11~36V Wide temperature working -40~+85℃ Range 0~±5/±10/±15/±30° (optional) High vibration resistance>20000g Baud rate: 100K~500K bps IP67 protection Output CANopen Volume (107*55*27mm) (customizable) Applications High voltage wire tower monitoring Satellite solar antenna positioning Aerial work truck Mining machinery, oil logging equipment Medical equipment Tilting leveling Hydraulic lifting platform Inclination monitoring Angle control of various construction machinery Inspection of bridges and dams
