Home Polycrystalline Solar Panel 70w Crystalline Pv Modulesquick Installation - China

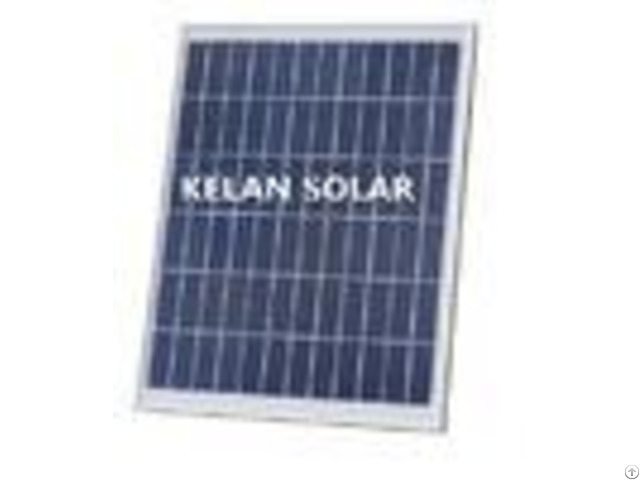

70Wp polycrystalline PV module/ 70Wp Poly solar panel Product Description Advantages: -High efficiency cells ensure the high energy yields -Easy and quick installation design with pre-drilled holes on the frame -Qualified raw material and advanced encapsulation meets most stringest safety requirents of high voltage operation -Production facility calibrated and staff trained by TUV ELECTRICAL DATA @ STC Values at standard test condition STC: air mass AM1.5, irradiance 1000W/m2, cell temperature 25C - - - - Module Type | | KL-95W-P | KL-100W-P | KL-105W-P | Peak Power_Pmax | W | 95 | 100 | 105 | Power Tolerance_Pmax | W | 5 | 5 | 5 | Voltage at Pmax_Vmpp | V | 17.73 | 17.97 | 18.23 | Current at Pmax_Impp | A | 5.36 | 5.57 | 5.76 | Open Circuit Voltage_Voc | V | 22.38 | 22.68 | 22.86 | Short Circuit Current_Isc | A | 5.64 | 5.86 | 6.05 | Module Efficiency_ | | 14.04% | 14.78% | 15.52% | - - - - TEMPERATURE RATING - - - - Temperature Coefficient of Pmax | %/C | -0.42 | Temperature Coefficient of Isc | %/C | 0.06 | Temperature Coefficient of Voc | %/C | -0.32 | - - - - MAXIMUM RATING - - - - Max.

System Voltage | V | 600 | Nominal Operating Cell Temperature(NOCT) | C | 452C | Operating Temperature | C | -40~+85C | Max.

static load, front(eg.

snow) | Pa | 2400 | Max.

static load, back(eg.

wind) | Pa | 2400 | Module Dimension(L*W*H) | mm | 670*1010*25/30 | Weight | kg | 7.1 | - - - - CONSTRUCTION MATERIALS - - - - Solar cells | 36/Poly/156mm*104.00mm | Glass | 3.2mm Low-iron tempered glass | Encapsulant | Ethylene vinly acetate(EVA) | Frame | Anodized Aluminium alloy(Silver) | - - - - Module Warranty: 25-year limited warranty of 80% power output; 10-year limited warranty of 90% power output; 5-year limited warranty of materials and workmanship.

HOW LIGHTWAY DO QUANLITY CONTROL? Vertically integrated production line from silicon ingot- silicon wafers- solar cell- solar modulesassembly with highly automatic production line; 90% equipment is imported from Europe, USA, Japan; Production line are certified by America company DNV KEMA; Strategic cooperation with TUV, randomly checking for production line, making sure the production line is under the best situation; More than 4 quality control points in each production process; All the staff went through strict training and testing before start work; All the equipment do calibration every 24 hours; R &D center focus on high efficiency solar cells and stable, higher output solar panels; Strictly raw material checking for raw silicon, glass, backsheet, EVA, Junction Box, etc.

Product field: 1 - Gird-connected power generation system 2 - Off-grid power generation system 3 - Building-integrated power generation facilities Glass > Antireflective glass > Translucency of normal luminance is increased by 2% > Module efficiency is increased by 2% > Self-cleaning function > Service life is as long as 25 years (30 years optional) Solar Cell > High Efficiency PV Cells > Appearance Consistency > Color sorting ensure consistent appearance on each module > Anti-PID Frame > Conventional frame > Silver or black frames are optional > Boost bearing capability and prolong service life > Serrated-clip design tensile strength > Seal-lip designglue injection Junction box > Conventional standalone edition and engineering custom edition > Quality diode ensures module running safety > IP67 protection level > Heat dissipation > Long service life EVA anti-aging EVA, excellent weathering resistance TPT Payment - - - - Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | FOB | CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | CIF | L/C | L/C amount above 50, 000 usd, we can accept L/C at sight | West Union | Amount lower than 5000usd | West Union | Delivery Time | 7~10days after receiving payment for one container | - - - -

Company Contact:

• Posted By: Ningbo Kelan Solar Electric Co., Ltd.

• Phone: 86-574-86768338

• Address: 9, xinyi road, xienan industrial zone, daxie development zone, Beilun, Ningbo,China, Ningbo , Zhejiang , China

• Email:

• Website: https://www.monocrystalsolarpanel.com

• Business Description: Kelan Solar, established in 2008, is a professional green power producer of solar panel and solar module in Ningbo, China.

  Our main products are 2 -350 watt mono crystalline and poly crystalline silicon solar panels in standard or special sizes and shapes.
