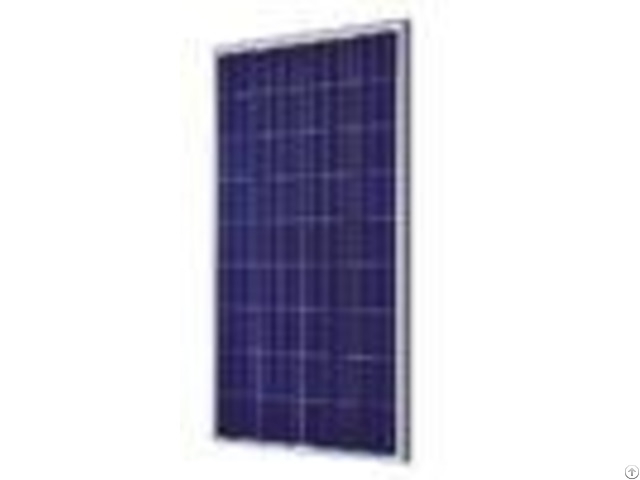

House Polycrystalline Solar Panel 180w Crystalline Pv Modules Silver Frames - China
price: check with company for price
180Wp polycrystalline PV module for rooftop/ground use ProfessioanlChinese manufacturer of Poly and Mono panels from 3W to 320W.
Key Features .
High Module conversion efficiency, through superior manufacturing technology .
Guaranteed power output tolerance from -3% to +3% .
Excellent performance under low-light irradiance environment .
Anodized aluminum is mainly for improving corrosion resistance .
Highly transparent, low iron tempered glass .
Entire module certified to withstand high wind loads(2400Pa) and snow loads(5400Pa) Warranty .
12-year material and workmanship warrantyhouse .
12 years for a guaranteed minimum benefit of 90% .
25 years for a guaranteed minimum benefit of 80% .
25 years warranty Specifications: - - - - Solar Panel Parameters | KL-180W-P | Optimized working voltage | 18V | Optimized working current | 10.0A | Open circuit voltage | 21.6V | Short circuit current | 8.333A | Nominal power | 180W | Operating temperature | -40 to+85 | Maximum system voltage | 1000VDC(IEC)/600VDC(UL) | Series fuse rated value | 20A | Power tolerance | 3% | Cell specification | 156156mm (6inch) | Arrangement quantity | 36(49) | Solar panel dimension | 147067035mm | Weight | 11.0kg | Glass specification | 3.2mm(0.13inch) tempered glass | Frame | Anodised aluminium alloy | Rated operating temperature | 452 | Pmax temperature parameter | -(0.480.05)%/ | Voc temperature coefficient: | -(0.340.1)%/ | Isc temperature coefficient | 0.040.01%/ | Notic: Data under standard testing condition (STC): 1000W/, AM1.5, 25 - | - - - - Description: 180W polycrystalline solar panel Item No: KL-180W-P Max.
Power: 180W Grade: A Glass > Antireflective glass > Translucency of normal luminance is increased by 2% > Module efficiency is increased by 2% > Self-cleaning function > Service life is as long as 25 years (30 years optional) Solar Cell > High Efficiency PV Cells > Appearance Consistency > Color sorting ensure consistent appearance on each module > Anti-PID Frame > Conventional frame > Silver or black frames are optional > Boost bearing capability and prolong service life > Serrated-clip design tensile strength > Seal-lip designglue injection Junction box > Conventional standalone edition and engineering custom edition > Quality diode ensures module running safety > IP67 protection level > Heat dissipation > Long service life EVA >anti-aging EVA, excellent weathering resistance TPT Product field: 1 - Gird-connected power generation system 2 - Off-grid power generation system 3 - Building-integrated power generation facilities We have a wild range of successful project all over the world.
We have advanced, mature and stable supply production line, support your request on solar market.
Company Contact:
- Posted By: Ningbo Kelan Solar Electric Co., Ltd.
- Phone: 86-574-86768338
- Address: 9, xinyi road, xienan industrial zone, daxie development zone, Beilun, Ningbo,China, Ningbo , Zhejiang , China
- Email:
Published date: February 2, 2018
- Business Description: Kelan Solar, established in 2008, is a professional green power producer of solar panel and solar module in Ningbo, China.
Our main products are 2 -350 watt mono crystalline and poly crystalline silicon solar panels in standard or special sizes and shapes.
