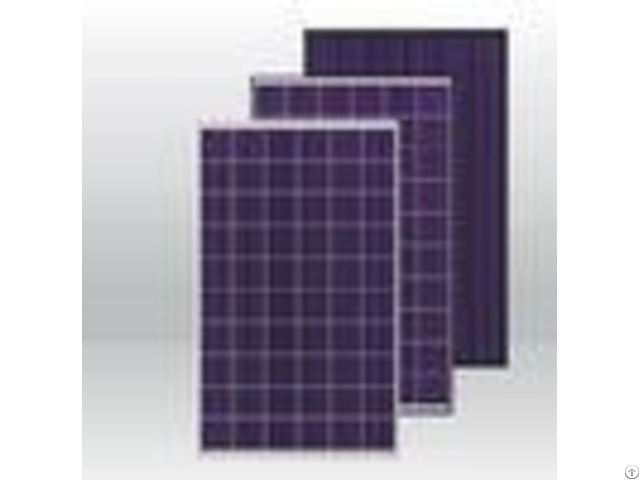

Industrial Crystalline Silicon Solar Panels200w 60 Photovoltaic Cells Per Module - China

200Wp poly crystalPV module / Solar Home systemProfessioanlChinese manufacturer of Poly and Mono panels from 3W to 320W.

150W 200W 250W 300W monocrystalline photovoltaic and poly solar cell solar system solar module solar panel A.

The specifical character - - - - Module type | KL-200W-P | Rated Power | 200Wp | Tolerance | +/-3% | Open Circuit Voltage (Voc) | 36V | Short Circuit Current (Isc) | 5.556A | Max.

Power Voltage (Vm) | 21.6V | Max.

Power Current (Im) | 9.259A | Temperature coefficients of Isc (%) | 0.10/C | Temperature coefficients of Voc(%) | -0.33/C | Temperature coefficients of Pm(%) | -0.23/C | Cell efficiency(%) | 17.64% | - - - - - - - - Overall Characteristics: - 60 Crystalline photovoltaic Cells per Module - Size: 1470*670*35MM(+/-10% ) - Weight: 12.0kg(+/-10%) - Glass 3.2mm tempered - EVA encapsulated - Glass Foil Sandwich Laminated - Sandblasting anodizing Aluminium frame - Hail up to 25mm diameter, 80 Km/h tested - Temperature Range: -40 to +85C - Nominal operating cell temperature (NOCT): 47C - Module Efficiency: >= 16% - Standards: IEC-61215, IEC-61730, IP-67 Electrical connection: - Junction Box - Bypass Diodes, nominal current 10A - Solar Cable 4mm 900mm with MC connectors - Module connection max 1000V DC in series - Limiting reverse current IR=0.2A | - - - - Key Features .

High Module conversion efficiency, through superior manufacturing technology .

Guaranteed power output tolerance from -3% to +3% .

Excellent performance under low-light irradiance environment .

Anodized aluminum is mainly for improving corrosion resistance .

Highly transparent, low iron tempered glass .

Entire module certified to withstand high wind loads(2400Pa) and snow loads(5400Pa) Warranty .

12-year material and workmanship warranty .

12 years for a guaranteed minimum benefit of 90% .

25 years for a guaranteed minimum benefit of 80% .

25 years warranty Glass > Antireflective glass > Translucency of normal luminance is increased by 2% > Module efficiency is increased by 2% > Self-cleaning function > Service life is as long as 25 years (30 years optional) Solar Cell > High Efficiency PV Cells > Appearance Consistency > Color sorting ensure consistent appearance on each module > Anti-PID Frame > Conventional frame > Silver or black frames are optional > Boost bearing capability and prolong service life > Serrated-clip design tensile strength > Seal-lip designglue injection Junction box > Conventional standalone edition and engineering custom edition > Quality diode ensures module running safety > IP67 protection level > Heat dissipation > Long service life EVA anti-aging EVA, excellent weathering resistance TPT Product field: 1 - Gird-connected power generation system 2 - Off-grid power generation system 3 - Building-integrated power generation facilities We have a wild range of successful project all over the world.

We have advanced, mature and stable supply production line, support your request on solar market.

Company Contact:

• Posted By: Ningbo Kelan Solar Electric Co., Ltd.

• Phone: 86-574-86768338

• Address: 9, xinyi road, xienan industrial zone, daxie development zone, Beilun, Ningbo,China, Ningbo , Zhejiang , China

• Email:

• Website: https://www.monocrystalsolarpanel.com

• Business Description: Kelan Solar, established in 2008, is a professional green power producer of solar panel and solar module in Ningbo, China.

  Our main products are 2 -350 watt mono crystalline and poly crystalline silicon solar panels in standard or special sizes and shapes.
