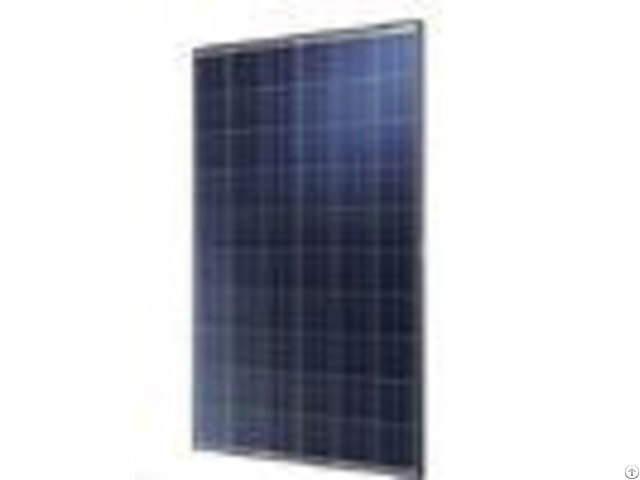

Ip65 Lightweightthermal Solar Panels 270w Corrosion Resistance Aluminum Frame - China

270Wp Poly crystal solar panel / 36V full power 270W photovoltaic module from Chinese professional manufacturer Features: 1 - 0 to +5W positive tolerance power.

2 - Module certified to withstand high snow loads, up to 5400Pa.

3 - Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.

4 - c improving corrosion resistance.

5 - Our IP67 rated junction box improves module performance and stability.

6 - introduces the new generation of solar modules.

Providing more power by utilizing high efficiency solar cells.

Their outstanding performance on energy yield helps our customers to maximize returns on investment specially on grid tie allplications.

7 - solar modules are manufactured according to IEC standards.

each module goes to a strict quality verification on through an EL testing process, The EL tester works like a X-ray scanner that immediately exposes every possible hidden defect in the solar panel.

This way you can get a crystal clear picture of the good operation of the solar panel.

8 - Our solar modules are designed to offer worry free used in the harshest climates.

For example, the strong and robust 40mm frame allows installation in multiple configurations, making an easy, safe and faster installation in harshest climates.

The water drains holes prevent frame breakage due to freezing temperatures.

9 - We provide a 10 years material and workmanship guarantee for our solar modules.

In addition, 90% power output guarantee for 10 years and 80% power output guarantee for 25 years of the modules life are provided.

1 - Cable connector for easy installation 2 - High efficiency and high stability 3 - Design to meet unique demend of customer.

4.20 years module output warranty.

5 - Advanced EVA encapsulation system with PET back sheet to improve product modules 6 - Splendid aesthetic appearance and easy installation.

Specifications - - - - Solar Panel Parameters | KL-270W-P | Optimized working voltage | 30.0V | Optimized working current | 9.0A | Open circuit voltage | 36.0V | Short circuit current | 7.50A | Nominal power | 270W | Operating temperature | -40 to+85 | Maximum system voltage | 1000VDC(IEC)/600VDC(UL) | Series fuse rated value | 20A | Power tolerance | 3% | Cell specification | 156156mm (6inch) | Arrangement quantity | 60(610) | Solar panel dimension | 164099040mm | Weight | 17.0kg | Glass specification | 3.2mm(0.13inch) tempered glass | Frame | Anodised aluminium alloy | Rated operating temperature | 452 | Pmax temperature parameter | -(0.480.05)%/ | Voc temperature coefficient: | -(0.340.1)%/ | Isc temperature coefficient | 0.040.01%/ | Notic: Data under standard testing condition (STC): 1000W/, AM1.5, 25 - | - - - - Glass > Antireflective glass > Translucency of normal luminance is increased by 2% > Module efficiency is increased by 2% > Self-cleaning function > Service life is as long as 25 years (30 years optional) Solar Cell > High Efficiency PV Cells > Appearance Consistency > Color sorting ensure consistent appearance on each module > Anti-PID EVA anti-aging EVA, excellent weathering resistance TPT Frame > Conventional frame > Silver or black frames are optional > Boost bearing capability and prolong service life > Serrated-clip design tensile strength Junction box > Conventional standalone edition and engineering custom edition > Quality diode ensures module running safety > IP67 protection level > Heat dissipation > Long service life Product field: 1 - Gird-connected power generation system 2 - Off-grid power generation system 3 - Building-integrated power generation facilities.
