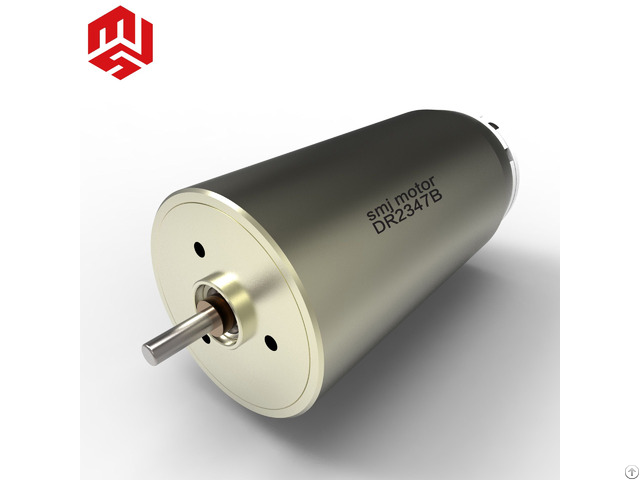

Japanese Technology China Factory Price Electric Magnet Dc Brush Motors - China

price: 40.00 Dollar US$

Series: DR2347B

Japanese technology china factory price electric magnet motor dc brush motor Rotary DC Motors Warranty: 3months-1year


Place of Origin: Shanghai, China

Brand Name: SMJ

Usage: BOAT, Electric Bicycle, SMART HOME, Automation & Actuators

Type: Brush Motor

Torque: 28.1mNm

Construction: Permanent Magnet

Commutation: Brush

Protect Feature: Totally Enclosed

Speed(RPM): 7570rpm

Continuous Current(A): 0.93-1.46A

Efficiency: IE 1

Application: Automatic industry, Robots, AGVS, Tattoo gun

Torque max: 28.1mNm

brush type: graphite brushes

stall torque: 126.81mNm

diameter: 23mm

length: 46.9mm

certification: CE DC brushed motor (coreless) application:

1 - The healthcare industry: They can be used to power dialysis pumps, CPAP machines, surgery tools, and ambulatory infusion pumps.

2 - Robotics: Engineers install them in positioning systems and small wheel systems in robot projects.

3 - Automation & Actuators: These motors can be used in precise automation systems and high accuracy actuators.

4 - Laboratories: Engineers can use it to drive small but effective equipment such as pumps, stirrers, and centrifuges.

5 - Office equipment: Thanks to their small size, effective motors can be installed in printers, card readers, and other office

equipment, without the need to make the products bigger.

6 - Audio/visual equipment: Pan and tilt drives for cameras & audio turntables can be fitted with effective motors that work quietly.

Important: Please email us to get the detailed specification.


Company Contact:


  • Phone: +8618918851907

  • Address: No.1-2 Lane 330 Rongbei Road, Songjiang Distric, Shanghai , Shanghai , China

  • Email: Email

Published date: June 4, 2023

  • Business Description: Shanghai Mindong Mechanism Electron Co., Ltd is a Japanese leading developers and producers of high performance motors.

    Mindong was founded in 2004 which is a professional manufacturer of ironless linear motors, brushed DC motors and related accessories.

    For more than 18 years research, development and innovation, the quality of our high end motors is comparable with top products of the world.

    Also Mindong still can give customize medium end OEM solution.

    About our factoryMindong can serve customer specific solutions.

    We promise we will give customers same products grade for sample and bulk order.

    Quality is tradition at Mindong, our engineers make long-term mechanical stress tests to correct possible weaknesses under real load.

    As a Japanese organization, we have built on advanced and pragmatic management philosophy and strict quality control flow.

    We are committed to serving our customers through innovation, profession and the high quality system solutions.
