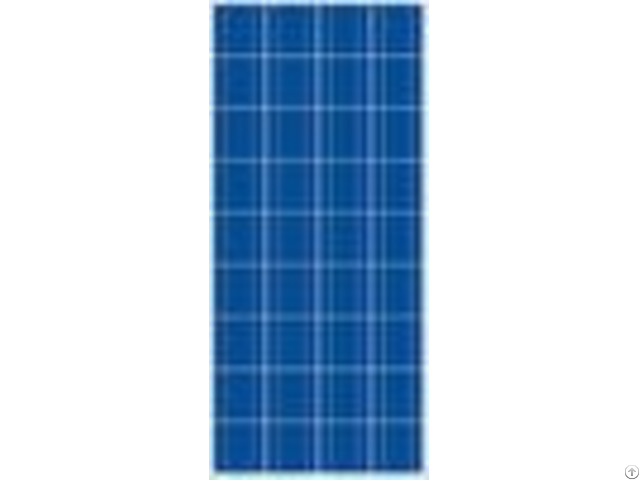

Lightweight Solar Electric Panels120wsilver Frames Boost Bearing Capability - China
price: check with company for price
120W poly solar panel, poly 120W 36cells PV module, factory direct price, polycrystal solar panel on roof.
A polycrystalline solar module is made from a block of silicon that has multiple crystals.
These panels are square in shape, and may have a surface that looks some what like a mosaic.
This mix of different crystals makes the polycrystalline module a good performing type of cell.
Polycrystalline solar panels historically have been a popular choice.
Product features: 1 - High-transmittance low-iron tempered glass, anti-aging EVA, excellent weathering resistance TPT 2 - Anodized quality aluminum frame, beautiful appearance 3 - Wind resistance, pressure resistance, high conversion efficiency Specifications: - - - - Solar Panel Parameters | KL-120W-P | Optimized working voltage | 18V | Optimized working current | 6.667A | Open circuit voltage | 21.6V | Short circuit current | 5.556A | Nominal power | 120W | Operating temperature | -40 to+85 | Maximum system voltage | 1000VDC(IEC)/600VDC(UL) | Series fuse rated value | 20A | Power tolerance | 3% | Cell specification | 15693mm | Arrangement quantity | 36(312) | Solar panel dimension | 120054035mm | Weight | 8.0kg | Glass specification | 3.2mm(0.13inch) tempered glass | Frame | Anodised aluminium alloy | Rated operating temperature | 452 | Pmax temperature parameter | -(0.480.05)%/ | Voc temperature coefficient: | -(0.340.1)%/ | Isc temperature coefficient | 0.040.01%/ | Notic: Data under standard testing condition (STC): 1000W/, AM1.5, 25 - | - - - - glass > Antireflective glass > Translucency of normal luminance is increased by 2% > Module efficiency is increased by 2% > Self-cleaning function > Service life is as long as 25 years (30 years optional) Solar Cell > High Efficiency PV Cells > Appearance Consistency > Color sorting ensure consistent appearance on each module > Anti-PID Frame > Conventional frame > Silver or black frames are optional > Boost bearing capability and prolong service life > Serrated-clip design tensile strength > Seal-lip designglue injection Junction box > Conventional standalone edition and engineering custom edition > Quality diode ensures module running safety > IP67 protection level > Heat dissipation > Long service life EVA anti-aging EVA, excellent weathering resistance TPT Product field: 1 - Gird-connected power generation system 2 - Off-grid power generation system 3 - Building-integrated power generation facilities
Company Contact:
- Posted By: Ningbo Kelan Solar Electric Co., Ltd.
- Phone: 86-574-86768338
- Address: 9, xinyi road, xienan industrial zone, daxie development zone, Beilun, Ningbo,China, Ningbo , Zhejiang , China
- Email:
Published date: February 2, 2018
- Business Description: Kelan Solar, established in 2008, is a professional green power producer of solar panel and solar module in Ningbo, China.
Our main products are 2 -350 watt mono crystalline and poly crystalline silicon solar panels in standard or special sizes and shapes.
