Lte 1 7 3 8g 4g 5g Mimo Dish Antenna 900mm - China

price: 88.00 Dollar US$

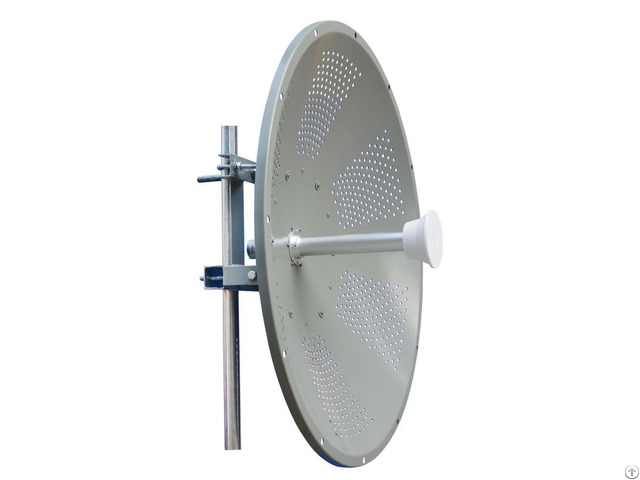

Lte 1 7 3 8g 4g 5g Mimo Dish Antenna 900mm

Products Photos Catalog Lte Mimo Dish Antenna Photos Catalog

Electrical Frequency Range 1710-2690/3300-3800MHz


F/B Ratio ≥25dB

Gain 22/25dBi

V.S.W.

R ≤2.0

Isolation 25db

Horizontal Beam width 12±5°/10±5°

Vertical Beam width 12±5°/10±5°

Polarization ±45°

Lightning Protection DC Grounded

Maximum Input Power 100W

Impedance 50Ώ

Connector 2xN Female

Cable Type RG142

Cable Length 30CM

Antenna Radome Material Aluminium alloy

Mount way Pole

Diameter of Installation Pole Ø50~Ø70mm

Mechanical Dimensions Φ900mm

Weight 7.5KG

Operating Temperature -40℃ to+70℃

Rated Wind Velocity 60m/s

RoHS Compliant YES


Company Contact:


  • Phone: 86-13542591153

  • Address: #12 Xing Ye 5 Road,Nan Feng Da Dao,Sanshui, Foshan , Guangzhou , China

  • Email: Email


Published date: May 19, 2022

  • Business Description: Asian Creation Communication antenna factory is an china antenna manufactory with more than 20 years of experience in manufacturing RF antenna.

    We always offer our professional technique and manufacturing technology to serve all of our customers.
