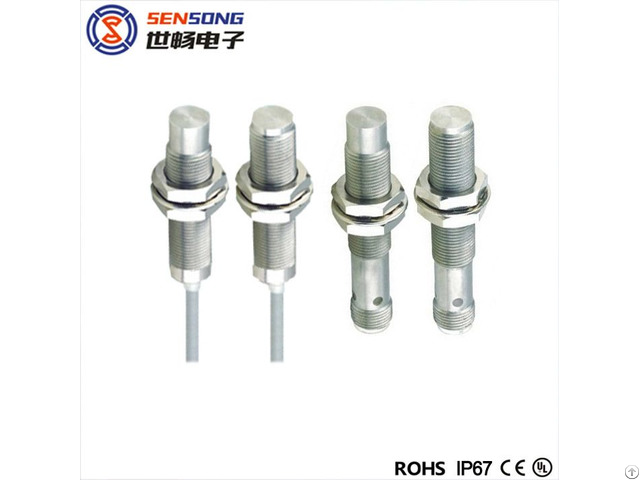

M12 All Metal Proximity Sensor - China

Precision

4)CE, UL, ROHS M12 Metal Face Inductive Sensor M12x6mmx68mm Metal Face Inductance Proximity Sensor Features:

1)IP67 Protection, Water-Proof and Oil-Proof

2)Full Steel Housing, Vibration-Proof

3)Anti-interference Design, High Precision

4)CE, UL, ROHS Certification, Long Service Diameter: M12

Mounting: Shielded / Non-shielded

Switching Distance: 2mm/4mm/6mm(shielded) / 4mm/8mm/10mm(non-shielded )

Housing Material: Stainless steel

With LED/Without LED: With LED

Operating Voltage: 10-30VDC

Ripple: <10%

No Load Current: <10mA

Max.

Load Current: 220mA

Leakage Current: <0.01mA

Voltage Drop: <1.5V

Switching Frequency: 2KHZ

Response Time: 0.1ms Protection Category: IP67

Operating Temperature: -25 to +70 (Celsius Degrees)

Temperature Drift: <10%(Sr)

Short Circuit Protection: Yes

Material Active Face: stainless DC 3 wire 10-30V NPN N.

O: Connection:

1) 2m Cable

2) 4 Pin Euro style M12 Connector

Weight(g): Approx.

47g Application:

1) SMT Equipment;

2) Packing Machines;

3) Robots

4) Automation Production Line
