M12 Non Flush Inductive Proximity Sensors - China

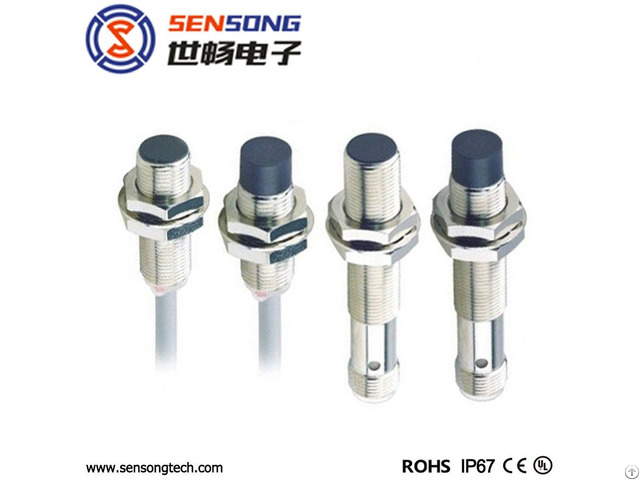

M12x30mm Length Flush Mounting Brass Body Cylinderical Inductive Proximity Sensor, also inductive proximity switch, inductance sensor, inductance switch, is based on Faraday's law of induction and is one type of proximity sensor/switch.

An inductive sensor to detects metallic objects without requiring physical contact with the targets to be sensed.

SENSONG offers a broad range of robust inductive sensors to suit a wide variety of industrial applications.

Usually it have a operting voltae range of 10-30Vd with NPN-NO, NPN-NC, PNP-NO, PNO-NC output function and 3 connection versions that include 2m PVC cable version and 4 Pins Euro Style M12 Connector version.

Diameter M12

Switching Distance 2mm / 4mm / 6mm (Flush)

Housing Material Nickel plated brass

With LED Yes

Operating Voltage 10-30VDC

Ripple <10%

No Load Current <10mA

Max.

Load Current 200mA

Leakge Current <0.01mA

Voltage Drop <1.5V

Switching Frequency 2KHz / 1KHz / 500Hz

Response Time 0.1ms

Switching Hysteresis <15%(Sr)

Repeat Accuracy <1.0%(Sr)

Protection Category IP67

Operating Temperature -25ºC-+70ºC

Temperature Drift <10%(Sr)

Short circuit protection Yes

Reverse polarity protection Yes

Overload Trip Point 220mA

Certifications CE, ROHS, UL

Connection 2m Cable Packaging & Shipping

Package: 100pcs/CTN Gross weight: 10kgs/CTN

Volume: 0.027CBM/CTN Delivery Detail: Shipped in 10 days after payment

Our Services

1 - Delivery: A.

Fast Delivery: 3 to 5 days.

B.

Cheap Delivery: 15 to 25 days.

2 - Modes of Transportation: UPS/DHL/FEDEX/TNT/EMS/Ara mex, Door To Door, Door To Airport.

3 - Refound/warranty Policy

We ensure free replacement after receiving your notice 5 days and SENSONG item No., photos and invoice.

4 - Payment Terms: T/T, Paypal, Western Union, L/C

FAQ

What is our MOQ?

Sample: 1pcs (charged)

Order: 100 pcs

OEM item: Depends on your Qty.

How to purchase our products?

Step-1, Please tell us the model No.

you are interested in, Quantity, sensing distance, out put function and other specification

Step-2, Please tell us your installation environment, working temperature, we could recommend the most suitable products.

Step-3, Proforma Invoice with order details as your requested will be sent to your mailbox, goods will be delivered upon receipt of your full payment and shipping instruction
