M8mm Short Steel Body Flush Inductive Proximity Sensor Switch - China

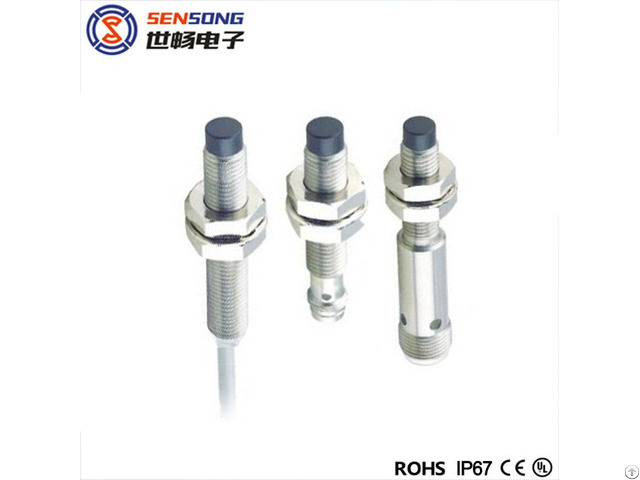

SENSONG brand M8 Steel Body Flush Mounting Inductive Proxmity Sensor, also inductive sensor, inductiance switch, inductive proximity switch, inductance sensor, inductance switch, proximity sensor, is based on Faraday's law of induction and is one type of proximity sensor/switch.

An inductive sensor to detects metallic objects without requiring physical contact with the targets to be sensed.

SENSONG offers a broad range of robust inductive sensors to suit a wide variety of industrial applications.

Usually this type sensor have a operating voltage range of 10-30VDC, 5-36VDC, 10-55VDC, 10-60VDC with NPN-NO, NPN-NC, PNP-NO, PNP-NC output function and connection versions like 2m PVC Cable version, 3 Pins Pico Style M8 Connector version and 4 Pins Euro Style M12 Connector version.

Now SENSONG industrial sensors mainly are Inductive Proximity Sensors, Metal Face Inductive Proximity Sensors, Analog Output Inductive Proximity Sensors, Corrosion Resistance Proximity Sensors, Weld Field Immune Inductive Proximity Sensors, Namur Inductive Proximity Sensors, Ring Inductive Proximity Sensors, High Pressure Resistance Inductive Proximity Sensors, Magnetic Hall Sensors, Capacitive Proximity Sensors, Photoelectric Sensors, Laser Sensors, Safety Light Curtain, sensor connectors, etc.

Advantages of inductive proximity sensor

1 - Using self-developed special IC improve anti-jamming performance

2 - Built-in power reverse connection protection circuit (DC3 wire)

3 - Long life, high reliability, economic and simple operation

4 - Yellow / Red LED can confirm the proximity switch working state

5 - IP67 degree of protection (IEC) specifications

6 - Widely used alternative micro switch and the limit switch Diameter M8mm Response Time 0.1ms

Switching Distance 1mm /(Flush)

2mm /(Flush)

3mm (Flush) Switching Hysteresis <15%

Housing Material Sainless Steel Repeat Accuracy <1.0%(Sr)

With LED Yes Protection Category IP67

Operating Voltage 10-30VDC Operating Temperature -25ºC-+70ºC

Ripple <10% Temperature Drift <10%(Sr)

No Load Current <10mA Short circuit protection Yes

Max.

Load Current 200mA Reverse polarity protection Yes

Leakge Current <0.01mA Overload Trip Point 220mA

Voltage Drop <1.5V Certifications CE, ROHS, UL

Switching Frequency 2KHZ Connection 2m Cable, M8 Pigtail

M12 Connector FAQ

What is our MOQ?

Sample: 1pcs (charged)

Order: 100 pcs

OEM item: Depends on your Qty.

How to purchase SENSONG inductive / capacitive /photoelectric sensors?

Step-1, Please tell us the model No.

you are interested in, Quantity, sensing distance, out put function and other specification

Step-2, Please tell us your installation environment, working temperature, we could recommend the most suitable products.

Step-3, Proforma Invoice with order details as your requested will be sent to your mailbox, goods will be delivered upon receipt of your full payment and shipping instruction
