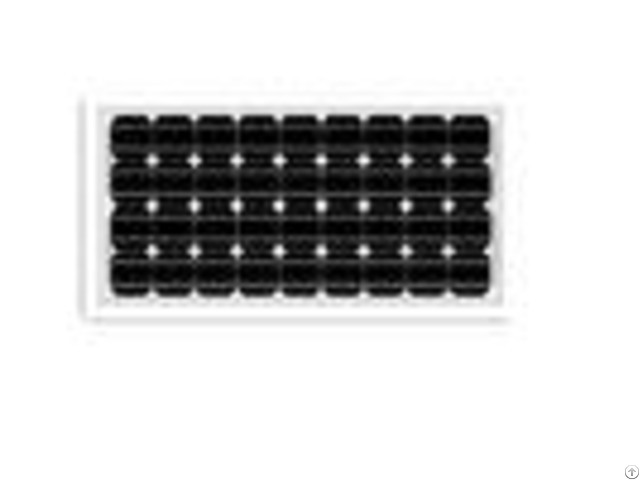

Midium Size 90 Watt Solar Cell Panelself Cleaning With Weather Resistance Tpt - China

Home Application 90W Mono crystallineSolar Panel With High Quality Brief introduction The solar panel refers to the battery cell which absord the sun's rays and use it as the source of energy for generating electricity or heating.

It is an integral part of photovoltaic solar system.

solar panel can generate and supply the solar electricity for commercial and residental applications.

About the meterial of solar panel, there are two kinds in the market: monocrystalline silicon and polycrystalline silicon.

Compared with polycrystalline silicon, monocrystalline silicon has high efficiency and long service life.

PRODUCTS SPECIFICATION: - - - - Name | Home Application 80W Solar Panel With High Quality | Model No.

| KL-90W-M | Max.

Power | 90W | Maximum Power Voltage (Vmp) | 17.5V | Frame color | Silver Or Black Solar Panel Roof Tiles | Open Circuit Voltage (Voc) | 21.6V | Frame | Anodized aluminium alloy or Plastomer | Short Circuit Current (Isc) | 5.6A | Maximum Power Current (Imp) | 5.5A | Size | 550*1200*35mm | Key Word | Home Application Solar Panel Roof Tiles | Material | monocrystalline Silicon 90W Solar Panel | Supply Ability | 10000 pieces per month | - - - - Product features: 1 - Glass: > High-transmittance low-iron tempered glass > Antireflective glass > Translucency of normal luminance is increased by 2% > Module efficiency is increased by 2% > Self-cleaning function > Service life is as long as 25 years (30 years optional) 2 - anti-aging EVA, excellent weathering resistance TPT 3 - Frame > Anodized quality aluminum frame, beautiful appearance > Conventional frame > Silver or black frames are optional > Boost bearing capability and prolong service life > Serrated-clip design tensile strength > Seal-lip designglue injection 4 - Solar Cell > High Efficiency PV Cells > Appearance Consistency > Color sorting ensure consistent appearance on each module > Anti-PID Junction box > Conventional standalone edition and engineering custom edition > Quality diode ensures module running safety > IP67 protection level > Heat dissipation > Long service life 5 - Wind resistance, pressure resistance, high conversion efficiency Product field: 1 - Gird-connected power generation system 2 - Off-grid power generation system, small solar system for fans, TV, computer, home electrical facilities.

3 - Building-integrated power generation facilities PRODUCT PARAMETERS - - - - Maximum Power | Dimebsion | Maxiumu Power Voltage (Vmp/V) | Maximun Power Current (Lsc/A) | Open Circuit Current (Vmp/V) | Short Circuit Current (Lsc/A) | Cell Num.

| Weight | W | L*W*H.

mm | pieses | kg | 10 | 240*360*17 | 17.5 | 0.57 | 21.6 | 0.63 | 3*12 | 1 | 25 | 280*640*25 | 17.5 | 1.42 | 21.6 | 1.57 | 4*9 | 2 | 30 | 340*640*25 | 17.5 | 1.71 | 21.6 | 1.89 | 4*9 | 2.5 | 40 | 420*670*25 | 17.5 | 2.29 | 21.6 | 2.52 | 4*9 | 3.2 | 50 | 530*670*30 | 17.5 | 2.86 | 21.6 | 3.14 | 4*9 | 4 | 60 | 600*670*30 | 17.5 | 3.43 | 21.6 | 3.77 | 4*9 | 4.5 | 70 | 700*670*30 | 17.5 | 4.01 | 21.6 | 4.38 | 4*9 | 5.8 | 80 | 770*670*30 | 17.8 | 4.51 | 21.8 | 4.94 | 4*9 | 5.8 | 90 | 850*670*30 | 17.8 | 5.06 | 21.8 | 5.56 | 4*10 | 6.5 | 100 | 1010*670*30 | 17.8 | 5.62 | 21.8 | 6.18 | 4*9 | 7.5 | 120 | 1120*670*30 | 18 | 6.67 | 22.2 | 7.33 | 4*9 | 8.2 | 140 | 1480*670*30 | 18 | 7.78 | 22.2 | 8.56 | 4*9 | 12 | 140 | 1480*670*30 | 36 | 3.89 | 43.89 | 4.28 | 6*12 | 12 | 150 | 1480*670*30 | 18 | 8.33 | 22.2 | 9.17 | 4*9 | 12 | 150 | 1480*670*30 | 36 | 4.17 | 43.95 | 4.58 | 6*12 | 12 | 180 | 1320*992*35 | 30 | 6.05 | 37.05 | 6.64 | 6*10 | 15 | 180 | 1320*992*35 | 36 | 5.03 | 44.27 | 5.54 | 6*12 | 15 | 190 | 1320*992*35 | 30 | 6.33 | 37.05 | 6.97 | 6*10 | 15 | 190 | 1320*992*35 | 36 | 5.28 | 44.3 | 5.82 | 6*12 | 15 | 200 | 1320*992*35 | 30 | 6.67 | 37.05 | 7.33 | 6*10 | 15 | 200 | 1320*992*35 | 36 | 5.56 | 44.32 | 6.11 | 6*12 | 15 | 230 | 1640*992*40 | 30 | 7.67 | 37.1 | 8.43 | 6*10 | 16.4 | 230 | 1640*992*40 | 36 | 6.39 | 44.29 | 7.03 | 6*12 | 16.4 | 250 | 1640*992*40 | 30 | 8.33 | 37.1 | 9.17 | 6*10 | 16.4 | 250 | 1640*992*40 | 36 | 6.94 | 44.3 | 7.64 | 6*12 | 16.4 | 260 | 1640*992*40 | 30 | 8.67 | 37.2 | 9.53 | 6*10 | 16.4 | 260 | 1640*992*40 | 36 | 7.22 | 44.34 | 7.94 | 6*12 | 16.4 | 300 | 1956*992*40 | 30 | 9.95 | 37.2 | 10.95 | 6*10 | 21 | 300 | 19568992*40 | 36 | 8.33 | 44.41 | 9.17 | 6*12 | 21 | 320 | 1956*992*40 | 30 | 10.67 | 37.2 | 11.7 | 6*10 | 21 | 320 | 1956*992*40 | 36 | 8.89 | 44.46 | 9.78 | 6*12 | 21 | - - - - Packing one pcs per box, or as required Payment - - - - Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | FOB | CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | CIF | L/C | L/C amount above 50, 000 usd, we can accept L/C at sight | West Union | Amount lower than 5000usd | West Union | Delivery Time | 7~10days after receiving payment for one container | - - - -
