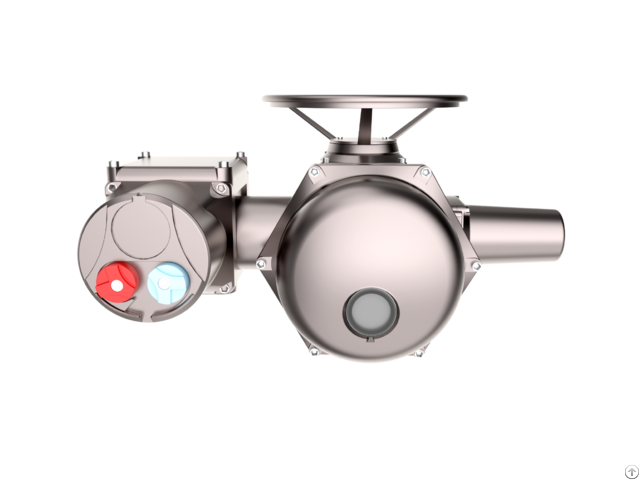

Multi Turn Actuator Electric Drives Control Valve - China

Multi-turn intelligent integration electric actuator can be used for control various of valves, like gate valve, globe valve, high temperature and high pressure valve, desuperheating water valve and other rotate valves with 0-360° rotation, and the torque is 60～6000Nm.

Explosion-proof Grade : IP67.

Electrical Characteristics

1 - Valve Position Limitation and Protection

Actuator automatically stops after traveling to the closing position or open position.

2 - Protection of Instant Reverse Running

When the actuator receives a command for motion in the opposite direction, it automatically add a time lag, to prevent unnecessary wear to the valve shaft and transmission box.

3 - Power Brake

It helps to improve precision of valve position.

4 - Access-free Debugging

Working parameter setup, system status inquiry can be realized on buttons or infrared controller, without needs to open the electrical protection cover, so that dust, moist and other hazardous substances in the environment can not enter the actuator and the reliability of electrical control will be greatly improved.

5 - Dead Zone Self-adaption

In “Remote Auto Control” mode, no setting or dead adjustment will be required, and the system can, on basis of its operating status, automatically measure and locate and precisely determine the dead zone values, ensuring vibration-free and high-precision operation of the actuator.

6 - Easy Wiring

Quick-set connection is adopted on the actuator for wiring.

The external wire is connected to the plug, and the actuator can be removed simply by unplugging operations.

The plugs are water-proof and thus prevent errors by reconnection during maintenance process.

7 - Power-loss-safe Status Indication

The configurable bi-stable relay output contact can be used to indicate various status of the valve (including open/close limits, over-torque, operating indication or destination position of valve, etc.

), which will not change even the system loses power supply.

8 - Multiple Controls

① Field control

When the system runs in “Field Control” mode by using the “Field Control” button, the “Open”, “Close” buttons or “Infrared controller” may be used on site to control the opening, closing or stopping of valve.

② Remote switch control

The switch control provides three input terminals, respectively Open, Close, Stop/Hold; Switch control can realize “Hold” or “Inch” control by external circuits.

③ Remote current control (also known as Remote Auto Control)

Users can control the actuator operation by DC4~20mA electric current, to realize precision positioning of valve.

④ Two-wire control

The actuator provides two-wire power operation functions.

It can realize special controls, such as “Open on signal” and “Close on signal”.
