P31 25mrad Tilt Angle Piezo Fast Steering Mirror - China

price: contact company for price

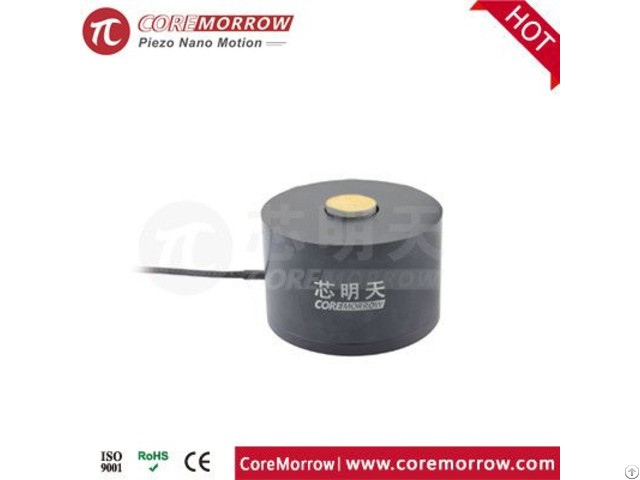

P31 25mrad Tilt Angle Piezo Fast Steering Mirror

Products Photos Catalog P31 25mrad Tilt Angle Photos Catalog

Characteristics:

• deflection to 50mrad

• Closed-loop for high linearity

• For mirrors up to 50mm Diameter

• Frictionless, flexure guide

Applications:

• Laser scanning

• Beam steering/stabilization


• Image stabilization

• Optics

• Imaging

• Scanning measurement

Technical Data:

• Types: XS-334.40S, XS-334.40K

• Active axes: θX, θY

• Integrated sensor: SGS

• Tilt angle(0~+120V): 40mrad

• Max tilt angle: 50mrad

• Angular resolution: 4 or 1.4urad

• Linearity: 0.2%F.S.

• Repeatability: ±0.1%F.S.

• Unloaded response frequencyθX, θY: 200Hz

• Response frequencyθX, θY(Φ50x8mm glass): 50Hz

• Electrical capacitance: 21.6uF/axis

Mass: 0.7kg


Company Contact:


  • Phone: 0451-86268790

  • Address: 1F, Building I2, No.191 Xuefu Road, Nangang District, Harbin，China, Harbin , China , China

  • Email: Email


Published date: February 18, 2021

  • Business Description: CoreMorrow Ltd. focuses on research，development, production and sales of nanoscale precision positioning products, mainly in the service of high-end precision equipment manufacturers.

    After nearly 20 years of rapid development, our market has covered all well-known colleges and universities, research institutes, and high precision equipment manufacturers, and exported to Europe, America, Canada, Singapore, Japan, Korea and other countries.

    We have established partnerships with a number of high-tech enterprises, state key laboratory, has become Chinese most professional precision positioning products manufacturer.
