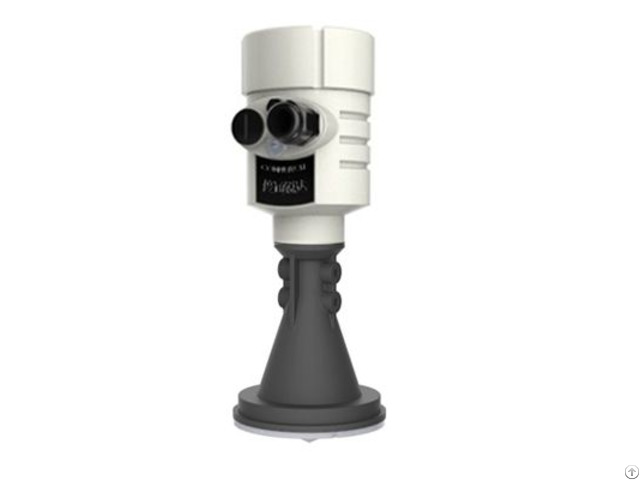

Radar Level Sensor For Solid - China

Features

-Radar level meter adopts 26GHz frequency;

-Beam angle is small (minimum 5 degrees), the energy is concentrated, have stronger anti-interference ability, greatly improves the precision and reliability of measurement;

-Antenna size is small, easy to install and add dustproof cover antenna protection device;

-Measuring blind area smaller, for small measurement can also obtain good effect;

-Wavelength is shorter, more suitable for small granular material level measurement;

-Non-contact measuring;

-Not affected by specific gravity, pressure, temperature, viscosity, foam and dust; -Measuring distance and actual level;

-Isolated circuit design.

Parameter

Applications: bulk, granular, powder solid

Measuring range: <15 m (49.21ft)

Antenna : horn antenna, PP, PVDF, PTFE

Process connection: flange ; mounting strap Process temperature: -40℃～80℃S

Process pressure: -1～2bar

Measuring accuracy: ±3mm

Frequency range: 26GHz

Signal output: 4～20 mA/HART

Power source: two line (DC24V) / four line (DC24V/AC220V)

Explosion-proof certification: Exia IIC T6 ;Exd [ia]ia IIC T6
