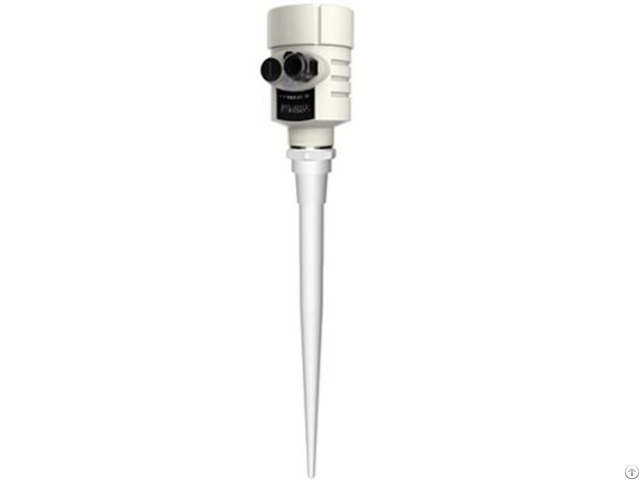

Radar Level Transmitter For Liquid - China

Features

-The antenna system radiates and receives low energy level microwave impulse, which travels at the speed of light.

The time period the impulse has traveled can be recorded and translated into level signals.

There is a special time delay method that offers stable and precise measurement in very short time.

-Non-contact measuring;

-Corrosive and toxic liquid, hydrocarbons, slurries;

-Not affected by specific gravity, pressure, temperature, viscosity, foam and dust;

-Measuring distance and actual level;

-Isolated circuit design.

Parameter

Applications: applicable for corrosive liquids and vessels with small process fitting under easy process conditions Measuring range: <35 m (114.83 ft)

Antenna : integral PVDF or PTFE encapsulated

Process connection: Thread, flange (material: PVDF or 316L)

Process temperature: -40°C～150°C

Process pressure: -1～3bar

Measuring accuracy: ±1cm

Frequency range: 6GHz

Signal output: 4～20 mA/HART

Power source: two line (DC24V) / four line (DC24V/AC220V)

Explosion-proof certification: Exia IIC T6 ;Exd [ia]ia IIC T6
