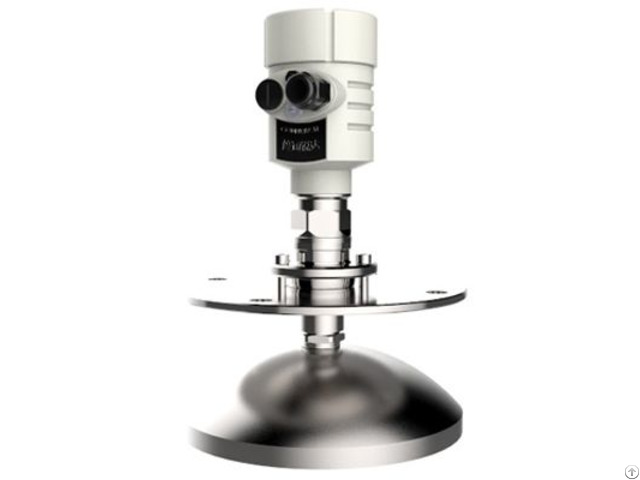

Radar Level Transmitter For Solid - China

Features

-Radar level meter adopts 26GHz frequency;

-Beam angle is small (minimum 5 degrees), the energy is concentrated, have stronger anti-interference ability, greatly improves the precision and reliability of measurement;

-Antenna size is small, easy to install and add dustproof cover antenna protection device;

-Measuring blind area smaller, for small measurement can also obtain good effect;

-Wavelength is shorter, more suitable for small granular material level measurement;

-Non-contact measuring;

-Not affected by specific gravity, pressure, temperature, viscosity, foam and dust; -Measuring distance and actual level; -Isolated circuit design.

Parameter Applications: bulk, granular, powder solid

Measuring range: <70m (229.66ft)

Antenna : horn antenna or parabolic antenna, 316L Process connection: thread, flange 316L Process temperature: -40℃～80℃S Process pressure: -1～2bar Measuring accuracy: ±3mm Frequency range: 26GHz Signal output: 4～20 mA/HART Power source: two line (DC24V) / four line (DC24V/AC220V)

Explosion-proof certification: Exia IIC T6 ;Exd [ia]ia IIC T6

Company Contact:

• Posted By: Connetech Electronics Technology Co., Ltd.

• Phone: 86 10 59146101

• Address: Room 617 No.432,Yun Jing East Road Tong Zhou District, Beijing , China

• Email:

• Business Description: Connetech is a supplier of innovative and differentiated products, solutions, and services for industrial process measurement and control.

  We specialize in liquid and solid level instrument design and manufacture.

  We provide high quality, highly functional products to our customers with exceptional service and knowledgeable engineering.

  As the reliable partner of OEMs, integrators, distributors, and represents we bring their customers satisfying products and service, considering their success as our own success.

  Thanks to the leading technology in level measurement, in practice, all of the products we provide are customized solutions developed for specific customer applications.

  Our company has a rapid timeframe for development-to-market, and we have a wide range of testing facilities to ensure product quality.

  We maintain a long-term perspective with all deliveries to our customers.

  We have the know-how, the solutions, and the flexibility to meet customers changing needs.
