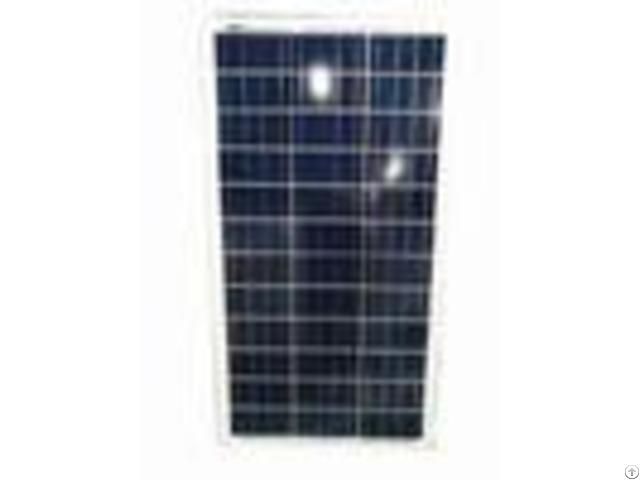

Residential 130w Polycrystalline Solar Panel 18v High Transmittance Glass - China

We have different model, size and power 3W-320W poly and Monoand any thing customized.

Product features:

1 - High-transmittance low-iron tempered glass, anti-aging EVA, excellent weathering resistance TPT.

2 - Anodized quality aluminum frame, beautiful appearance.

3 - Wind resistance, pressure resistance, high conversion efficiency.

Description: 130W Polycrystalline solar panel Specifications: - - - -

Solar Panel Parameters | KL-130W-P | Optimized working voltage | 18V | Optimized working current | 7.222A | Open circuit voltage | 21.6V | Short circuit current | 6.019A | Nominal power | 130W | Operating temperature | -40 to+85 | Maximum system voltage | 1000VDC(IEC)/600VDC(UL) | Series fuse rated value | 20A | Power tolerance | 3% | Cell specification | 15693mm | Arrangement quantity | 36(312) | Solar panel dimension | 120054035mm | Weight | 8.0kg | Glass specification | 3.2mm(0.13inch) tempered glass | Frame | Anodised aluminium alloy | Rated operating temperature | 452 | Pmax temperature parameter | -(0.480.05)%/ | Voc temperature coefficient: | -(0.340.1)%/ | Isc temperature coefficient | 0.040.01%/ | Notic: Data under standard testing condition (STC): 1000W/, AM1.5, 25 - | - - - - Applications:

1 - Living house and home building 2 - Office building, factory and warehouse

3 - Shopping mall, vanue, stadium and so on

4 - Power station, field operation some huge engineer construction Glass > Antireflective glass

> Translucency of normal luminance is increased by 2%

> Module efficiency is increased by 2%

> Self-cleaning function

> Service life is as long as 25 years (30 years optional) Solar Cell

> High Efficiency PV Cells

> Appearance Consistency

> Color sorting ensure consistent appearance on each module

> Anti-PID Frame

> Conventional frame

> Silver or black frames are optional

> Boost bearing capability and prolong service life > Serrated-clip design tensile strength > Seal-lip designglue injection Junction box

> Conventional standalone edition and engineering custom edition

> Quality diode ensures module running safety

> IP67 protection level

> Heat dissipation

> Long service life EVA anti-aging EVA, excellent weathering resistance TPT Product field:

1 - Gird-connected power generation system 2 - Off-grid power generation system 3 - Building-integrated power generation facilities
