Runntech 2 Axis Omnidirectional 4 12 20ma Analog Output Joystick - China
price: check with company for price

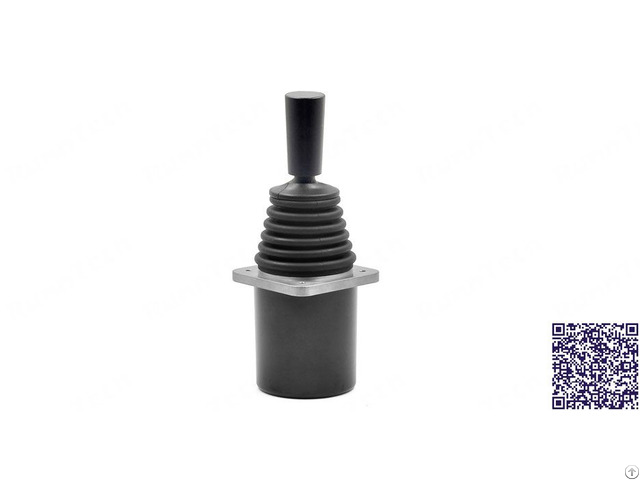

RT01 industrial joystick is mainly used in hydraulic proportional control and variable frequency motor control, such as Loaders, Cranes, Tractors, Harvesters, Excavators, Rotary table (drilling rig), Crane, Aerial work platforms, Forklift trucks, Mobile hydraulics, Shield tunneling machine, Hoist, Marine, Construction machinery, Civil engineering, Military vehicles, Cabin vehicles, Military robotics, Precision machine tools, Refuse handling trucks, Fire and off-highway vehicle etc.
P/N: RT01-T-3-I1(10К)-02(66)- HD1-M4
RT01: RunnTech 01 series cobra-head joystick;
T: mechanical spring return to center;
3: XY axis omnidirectional movement;
I1: input: 24Vdc, output: 4.12.20mA;
10K: 10K ohm precision potentiometer (with center tapped);
02: 2 normally open contacts in X/Y axis;
6: contacts closed at -32° to -3° and +3° to +32°;
HD1: grip top without pushbutton;
M4: mounting dimension 64x64mm, central hole: 83mm.
Company Contact:
- Posted By: RunnTech Electronics (Changzhou) Corp.
- Phone: 051982230053
- Address: Hutang Technology Industrial Park, Changzhou , Jiangsu , China
- Email:
- Website: https://www.runntech.com/
Published date: April 8, 2020
- Business Description: RunnTech [/r?n?tek/] specializes in research, development and manufacturing joysticks and controllers (Potentiometer or Hall sensors) for industrial applications.
All our joysticks and controllers are mainly used in hydraulic proportional control or variable frequency motor control, such as Cranes lifting control, Mine hoisting winch, Scissor Lift, Offshore drilling equipment, Maritime machinery, CNC turning machinery, Rolling mill control desk, Industrial robotics, Welding or Cutting machine, Audio video editing equipments, Photography CCTV control system, Medical imaging system, Loaders, Cranes, Tractors, Harvesters, Excavators, Shield tunneling machine, Rotary table (drilling rig), Electric forklift truck, Aerial work platform, etc.
