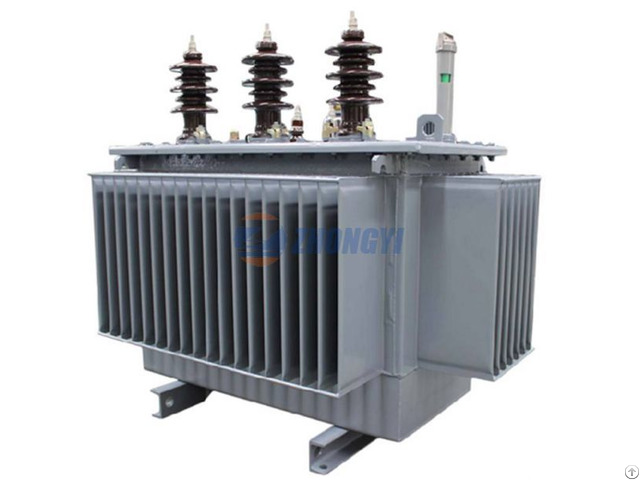

S B H15 M Series Sealed Amorphous Alloy Power Transformer - China

S(B)H15-M Series Sealed Amorphous Alloy Power Transformer, oil immersed transformer, oil immersed power transformer, oil distribution power transformer

Oil Immersed Transformer

The transformer is completely hermetical oil-immersed type.

The principle is the same as the hermetical power transformer.

The basic elements of the amorphous alloy is Iron, nickel, cobalt, boron and carbon etc.

Product Description

The transformer is completely hermetical oil-immersed type.

The principle is the same as the hermetical power transformer.

The basic elements of the amorphous alloy is Iron, nickel, cobalt, boron and carbon etc.

It is a kind of isotropic soft magnetic material with low magnetizing power.

With 0.027mm thickness and the filling coefficient is reduced to 0.75-0.8, the amorphous alloy material is very sensitive for stress.

The electrical resistivity of the material is 3-6 times of silicon steel sheet and the hardness is 5 times of it.

Load loss of S(B)H15-M 30～1600/6～10 series transformer can be reduced by 15% on the basis of GB/T6451 standard.

The no-load loss can be reduced by 70% on the base of GB/T6451 standard.

Amorphous alloy transformer meets the standard JB/T10318-2002 Technical parameter of oil immersed type amorphous alloy transformer.

Model and Meaning Technical Parameter of S(B)H15-M Series Hermetical Amorphous Alloy Power Transformer

Rated capacity(kVA) Voltage and tapping range Connection Group Symbol No-load Loss(W) Load Loss (W)75℃ No-load current (%) Short-circuit impedance(%) High Voltage (KV) Tapping ranges of High Voltage Low Voltage (KV) 30 66.31010.511 ±5% ±2×2.5% 0.4 Dyn11( or ) Yyn0 130 630/600 2.3 4.0

50 170 910/870 2.0 63 200 1090/1040 1.9 80 250 1310/1250 1.9 100 290 1580/1500 1.8 125 340 1890/1800 1.7 160 400 2310/2200 1.6 200 480 2730/2600 1.5 250 560 3200/3050 1.4 315 670 3830/3560 1.4 400 800 4520/4300 1.3 500 960 5410/5150 1.2 630 1200 6200 1.1 4.5

800 1400 7500 1.0 1000 1700 10300 1.0 1250 1950 12000 0.9 1600 2400 14500 0.8 2000 750 17400 0.20 5 We are pleased to deliver Transformer, Distribution Transformer, Power Transformer, Oil Transformer, Dry Type Transformer.

Safe payment and on time deliver time will give you.

If you want to know more about the product, please visit our website.
