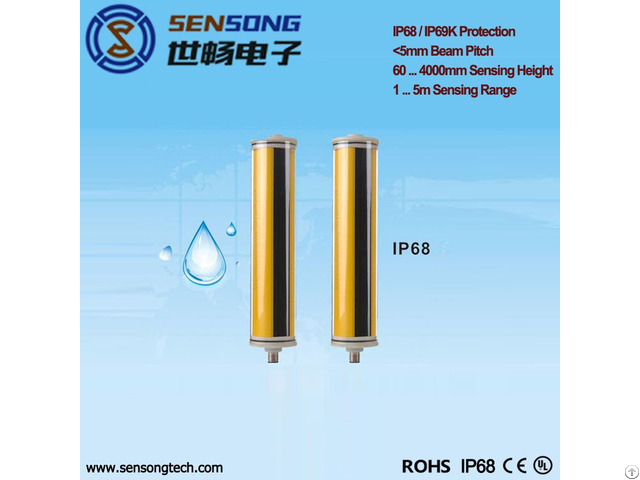

Sensong Barrier Sensor Waterproof Safety Light Curtain Ip69k 24v Npn Pnp Relay - China

Safety light curtains are photoelectric presence sensors specifically designed to protect personnel from injuries related to hazardous machine motion.

Light curtains offer optimal safety, yet they allow for greater productivity and are the more ergonomically sound solution when compared to mechanical guards.

SENSONG safety light curtains include models for finger and hand protection and products for whole body protection, and also measuring models.

Features Up to 500 beam Chanels Beam pitch: 1mm/2mm/5mm/10mm/15mm/20m m/30mm/40mm/60mm 60 .

5000mm Sensing Height 1 .

30m Sensing Range IP69K Protection Degree Sensing object Φ15mm or more opaque object(<15mm sensing object can also be customized) Supply voltage 12 to 24V DC ±10% Ripple p-p 10% or less Sensing mode Through beam Synchronous mode Optical Signal Synchronous or Cable Line Synchronous Output NPN open-collector transistor, Max.

Load current: 100mA; Voltage Drop: <1.5V PNP open-collector transistor, Max.

load current: 100mA; Voltage Drop: <1.5V Relay SPDT, 5A/250VAC, 5A/30VDC Output operation ON when all beams are received, OFF when one or more beams are interrupted.

Short-circuit protection Built-in Response time 10ms or less Indicator Emitter: Power indicator: green LEDx2 (light up when the power is ON; If emitter is off that is indicated by the number of LEDs lighting up) Receiver: Operation indicator: Red LED (lights up when one or more beams are interrupted), Stable indicator: Green LED(lights up when all beams are stable received) Protection IP69K Interference prevention function Incorporated Ambient temperature -15°C .

+65°C Ambient humidity 35 to 85% RH Ambient illuminance Sunlight: 10, 000L x at the light -receiving face, Incandescent light: 3, 000 x at the light-receiving face EMC immunity RFI>10V/m(in 30-1000MHZ), EFT>1KV, ESD>4KV(contact) Voltage withstand ability 1, 000 V AC for one min.

between all supply terminals connected together and enclosure Insulation resistance >100 MΩ Vibration resistance 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude in X, Y and Z directions for two hours each Shock resistance 490m/s2, acceleration(50G approx) in X, Y and Z directions for three times each Emitting Infrared LED Material Aluminum Enclosure, Polyester lens Connection 2m PVC Cable / M12 Connector Weight (g) Approx.

240g .

570g

Packaging & Shipping

Package: 100pcs/CTN Gross weight: 10kgs/CTN

Volume: 0.027CBM/CTN Delivery Detail: Shipped in 15 days after payment Our Services

1 - Delivery: A.

Fast Delivery: 3 to 5 days B.

Cheap Delivery: 15 to 25 days 2 - Modes of Transportation: UPS/DHL/FEDEX/TNT/EMS/Ara mex, Door To Door, Door To Airport.

3 - Refound/warranty Policy

We ensure free replacement after receiving your notice 5 days and SENSONG item No., photos and invoice.

4 - Payment Terms: T/T, Paypal, Western Union, L/C
