Sensong Factory Metal Face Inductive Sensor - China

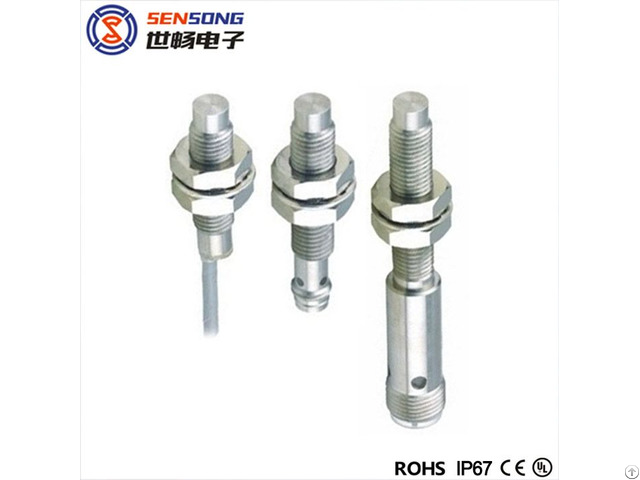

Product Description Metal Face Inductive Sensor / Switch with Diameter of M8/M12/M18/M30 SENSONG brand M8/M12/M18/M30 Series Metal Face Inductive Sensor, also metal face inductive sensor, metal face inductiance switch, steel face inductive proximity switch, steel face inductance sensor, steel face inductance switch, steel face proximity sensor, is based on Faraday's law of induction and is one type of proximity sensor/switch.

An inductive sensor to detects metallic objects without requiring physical contact with the targets to be sensed.

SENSONG offers a broad range of robust inductive sensors to suit a wide variety of industrial applications.

Usually this type sensor have a operating voltage range of 10-30VDC, 10-55VDC, 10-60VDC with NPN-NO, NPN-NC, PNP-NO, PNP-NC output function and connection versions like 2m PVC Cable version, 3 Pins Pico Style M8 Connector version and 4 Pins Euro Style M12 Connector version.

Now SENSONG industrial sensors mainly are Inductive Proximity Sensors, Metal Face Inductive Proximity Sensors, Analog Output Inductive Proximity Sensors, Corrosion Resistance Proximity Sensors, Weld Field Immune Inductive Proximity Sensors, Namur Inductive Proximity Sensors, Ring Inductive Proximity Sensors, High Pressure Resistance Inductive Proximity Sensors, Magnetic Hall Sensors, Capacitive Proximity Sensors, Photoelectric Sensors, Laser Sensors, Safety Light Curtain, sensor connectors, etc.

Advantages of inductive proximity sensor 1 - Using self-developed special IC improve anti-jamming performance

2 - Built-in power reverse connection protection circuit (DC3 wire)

3 - Long life, high reliability, economic and simple operation

4 - Yellow / Red LED can confirm the proximity switch working state

5 - IP67/IP68 degree of protection (IEC) specifications

6 - Widely used alternative micro switch and the limit switch Diameter M8mm/M12mm /M18mm/M30mm Response Time 0.1ms

Switching Distance 1mm.

40mm Switching Hysteresis <15%

Housing Material Sainless Steel Repeat Accuracy <1.0%(Sr)

With LED Yes Protection Category IP67/IP68

Operating Voltage 10-30VDC Operating Temperature -25℃-+70℃

Ripple <10% Temperature Drift <10%(Sr)

No Load Current <10mA Short circuit protection Yes

Max.

Load Current 200mA Reverse polarity protection Yes

Leakge Current <0.01mA Overload Trip Point 220mA

Voltage Drop <1.5V Certifications CE, ROHS, UL

Switching Frequency 2KHZ Connection 2m Cable, M8 Pigtail M12 Connector FAQ

What is our MOQ? Sample: 1pcs (charged) Order: 100 pcs OEM item: Depends on your Qty.

How to purchase SENSONG inductive / capacitive /photoelectric sensors? Step-1) Please tell us the model No.

you are interested in, Quantity, sensing distance, out put function and other specification Step-2) Please tell us your installation environment, working temperature, we could recommend the most suitable products.

Step-3) Proforma Invoice with order details as your requested will be sent to your mailbox, goods will be delivered upon receipt of your full payment and shipping instruction
