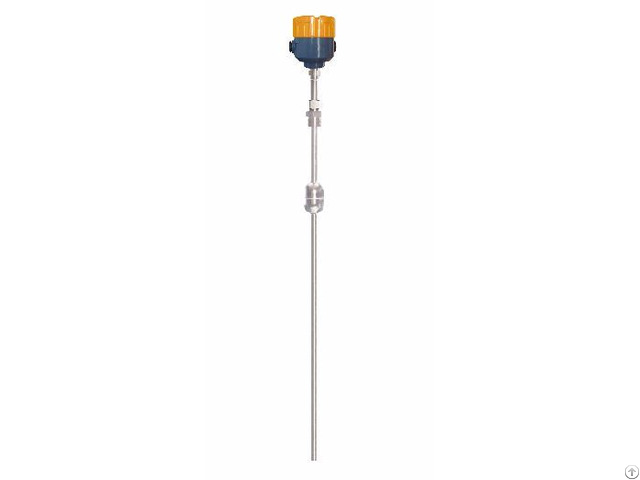

Single Compartment Magnetostrictive Level Transmitter - China
price: 400.00 Dollar US$
Electrical Parts & Housing
Measurement: Liquid level or interface
Repeatability: ±0.38 mm or 0.01% of full range(whichever is greater)
Nonlinearity: ±0.79 mm or 0.02% of full range(whichever is greater)
Accuracy: ±1 mm or 0.03 % of full range(whichever is greater)
Power Supply: 16~30 VDC, reversed polarity protection
Environment Temperature: -40~149℉(-4 0~65℃)
Display: LCD
Signal Output: 4~20 mA/ HART
Maximum Loop Resistance: 4~20 mA/ HART
Maximum Power Consumption: 0.65 W
Damping: 0.4~32s
Explosion Proof: Ex ia IIC T4, Ex d IIC T6
Protection Grade: IP66 / IP67
Resolution: Analog: 0.01 mA;
Digital: 0.01 of full range
Error Signal: 3.61 mA/ 20.96 mA
Humidity: 0~100%
Housing Structure: Single-compartm ent
Housing Material: Casting aluminum/ stainless steel
Housing Surface Treatment: Enamel polyester painting (Only for casting aluminum housing)
Electrical Connection: 1/2” NPT (F)/ M20×1.5
Probe Components
Process Pressure: Full Vacuum~2500psi(Full Vacuum~16Mpa)
Process Temperature: -40~500℉(-4 0~260℃)
Measuring Range: 0.5~20 ft (0.15~6.1m)
Probe Outside Diameter: 1/2” or 5/8”
Bottom Dead Zone: ＜2.5”(63mm)
Probe Type: Rigid probe
Probe Material: 316L SS(Standard)
Process Connection: NPT/ Flange
Company Contact:
- Posted By: Beijing SWISA Instrument Co., Ltd
- Phone: 0086 84440008
- Address: Building A, 2# Workshop, Fanghezhengyuan Industrial Park, Tongzhou Industrial Development Zone,, Beijing , Beijing , China
- Email:
- Website: http://www.swisacorp.com
Published date: August 26, 2016 - Modified date: August 31, 2016
- Business Description: SWISA is a Sino-Canada joint venture specialing in manufacturing magnetic level gauge and magnetostrictive level transmitter.
High temperature, high pressure, low temperature & cryogenic, hugh measuring range and other harsh working conditions.
