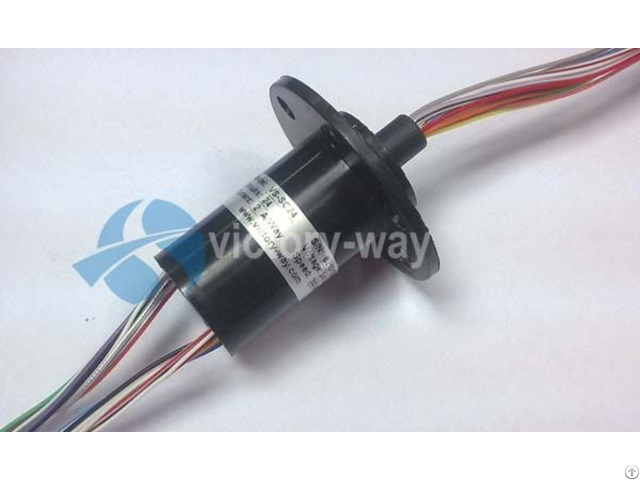

Standard Capsule Slip Ring 24 Circuits Compact Cost Effective - China

SC slip ring capsule is a standard, off-the-shelf unit that uses gold contacts at the rotary interface.

Color-coded lead wires are used on both the stator and rotor to distinguish, with double contacts & double precision roller bearings, it utilizes 90°V-groove rings to provide smoother running, lower torque and lower electrical noise.

Flame-retardant plastic shell, 6, 12, and 24 circuit models for Power and /or signal.

A.

)Specification:

Channels: 1~24 Ways

Voltage: 240V AC/DC

Current Rating: 2A/Ring

Speed: 300PRM

Insulation Resistance: 1000MΩ@500VDC

Dielectric Strength: AC250V@60Hz, 60S

Electrical Noise: 60 milliohms MAX @ 5~10 rpm, 50milliamps, 6V DC

Lead Size/Type: AWG28 Sliver plated coppe, Type ET Teflon

Lead Lengths: 250mm

Operate Temp: -20℃～+80℃

Storage Temp: -30℃～+90℃ B.

)Feature:

● Compact miniature design, small size, fit for harsh space;

● Double precision roller bearings for lower torque & long life;

● Signal and power can be combined to deliver in the same slip ring;

● More installation flanges for option.

C.

) Option:

● Higher speed;

● Metal shell;

● Available connector and Heat-shrink tube;

● Length of lead wires can be customized.

Our products are widely used in: Security, Factory Automation, Electric Instrumentation, Medical, Aerospace, Marine, Civil and Military Fields.

Such as: Crane, Giant Wheel, Cotton Picker, Medical Equipment, Detector, Rotary Tables, Robots, Strander, Webcam, Automatic Revolving Door, Exhibit / Display Equipment, Food Manufacturing Machine, Packaging Machine, Amusement Equipment, Irrigation Machine, Heated Rollers etc.

More product information welcome to visit our website.
