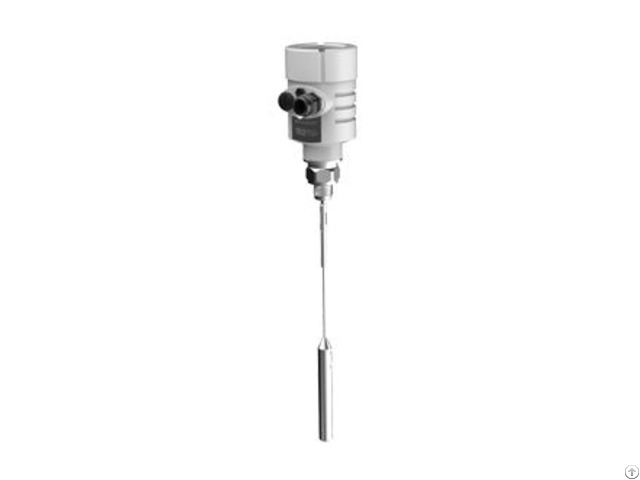

Tdr Radar For Liquid - China

Feature

• 316L stainless steel rod or cable

• Different versions of antenna: single rod/cable, double rod/cable, coaxial antenna

• Measuring range up to 30m

• Chemical-resistant for long-lasting performance

• High temperature up to 200°C

• Independent of process condition

• High plant availability and maintenance-free

Specifications

• Measuring range

• - Cable probe 0 ~ 30 m

• - Rod probe 0 ~ 6 m

• - Coax probe 0 ~ 3 m

• Sample frequency 16Hz

• Response time <2s

• Resolution 1mm

• Deviation ±2mm

• Repeatability ±1.5mm

• Frequency 100MHz ~ 1.8GHz

• Ambient temperature -40℃ ~ 70℃

• Process temperature -40℃ ~ 200℃

• Process pressure -1.0 kgf/cm² ~ 40 kgf/cm²

• Protect level IP67

Application

• Ordinary liquid, oil and water interface

• Vessels with foam, agitator and condensation.

• Reliable measurement independent of process conditions.

• Suitable for application of media with slight corrosivity and viscosity.

• Applicable for storage vessel, dosing vessel reactor with agitator, buffer vessel, by pass tube and guided wave tube.
