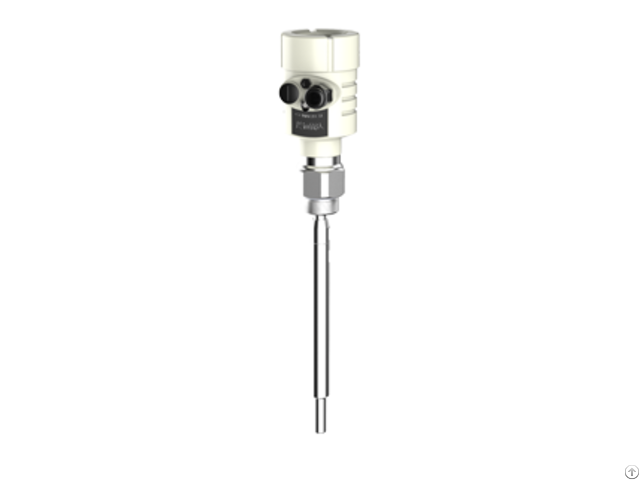

Tdr Radar Level Sensor - China

Application

• Cement, grain, power, wood chips, pellets, sand, aggregates, or plastics.

• Reliable measurement independent of process conditions.

• Chemical-resistant for long-lasting performance.

• Applicable for storage vessel, process vessel with agitator, buffer vessel.

Feature

• 316L stainlss steel antenna rod or cable

• Measuring range up to 30m

• Suitable for all kinds of conditions thanks to the different versions of antenna

• High plant availability and maintenance-free Specifications

• Measuring range

• - Cable probe 0 ~ 30 m

• - Rod probe 0 ~ 6 m

• - Coax probe 0 ~ 3 m

• Sample frequency 16Hz

• Response time <2s

• Resolution 1mm

• Deviation ±2mm

• Repeatability ±1.5mm

• Frequency 100MHz ~ 1.8GHz

• Ambient temperature -40℃ ~ 70℃

• Process temperature -40℃ ~ 200℃

• Process pressure -1.0 kgf/cm² ~ 40 kgf/cm²

• Protect level IP67

Company Contact:

• Posted By: Connetech Electronics Technology Co., Ltd.

• Phone: 86 10 59146101

• Address: Room 617 No.432,Yun Jing East Road Tong Zhou District, Beijing , China

• Email:

• Business Description: Connetech is a supplier of innovative and differentiated products, solutions, and services for industrial process measurement and control.

  We specialize in liquid and solid level instrument design and manufacture.

  We provide high quality, highly functional products to our customers with exceptional service and knowledgeable engineering.

  As the reliable partner of OEMs, integrators, distributors, and represents we bring their customers satisfying products and service, considering their success as our own success.

  Thanks to the leading technology in level measurement, in practice, all of the products we provide are customized solutions developed for specific customer applications.

  Our company has a rapid timeframe for development-to-market, and we have a wide range of testing facilities to ensure product quality.

  We maintain a long-term perspective with all deliveries to our customers.

  We have the know-how, the solutions, and the flexibility to meet customers changing needs.
