Transparent Multi Crystalline Solar Panel Ip67pv Cells Low Iron Tempered Glass - China

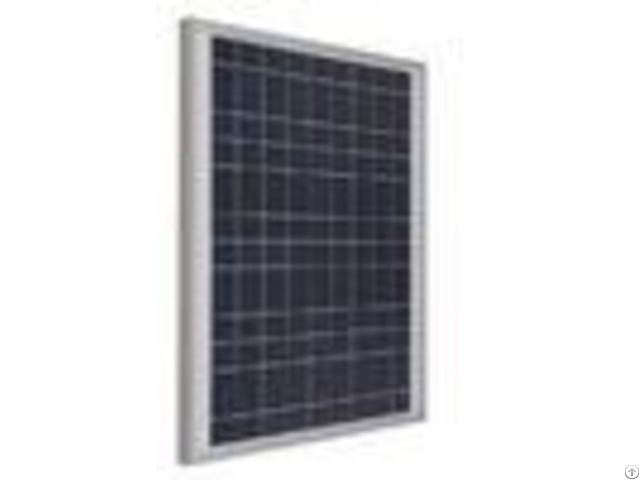

60Wp polycrystalline PV module/ 60Wp Poly solar panel Key Features .

High Module conversion efficiency, through superior manufacturing technology .

Guaranteed power output tolerance from -3% to +3% .

Excellent performance under low-light irradiance environment .

Anodized aluminum is mainly for improving corrosion resistance .

Highly transparent, low iron tempered glass .

Entire module certified to withstand high wind loads(2400Pa) and snow loads(5400Pa) Specifications: - - - - Solar Panel Parameters | KL-60W-P | Optimized working voltage | 18V | Optimized working current | 3.33A | Open circuit voltage | 21.6V | Short circuit current | 3.64A | Nominal power | 60W | Operating temperature | -40 to+85 | Maximum system voltage | 1000VDC(IEC)/600VDC(UL) | Series fuse rated value | 20A | Power tolerance | 3% | Cell specification | 15678mm | Arrangement quantity | 39(313) | Solar panel dimension | 82054035mm | Weight | 5.5kg | Glass specification | 3.2mm(0.13inch) tempered glass | Frame | Anodised aluminium alloy | Rated operating temperature | 452 | Pmax temperature parameter | -(0.480.05)%/ | Voc temperature coefficient: | -(0.340.1)%/ | Isc temperature coefficient | 0.040.01%/ | Notic: Data under standard testing condition (STC): 1000W/, AM1.5, 25 - | - - - - Glass > Antireflective glass > Translucency of normal luminance is increased by 2% > Module efficiency is increased by 2% > Self-cleaning function > Service life is as long as 25 years (30 years optional) Solar Cell > High Efficiency PV Cells > Appearance Consistency > Color sorting ensure consistent appearance on each module > Anti-PID Frame > Conventional frame > Silver or black frames are optional > Boost bearing capability and prolong service life > Serrated-clip design tensile strength > Seal-lip designglue injection Junction box > Conventional standalone edition and engineering custom edition > Quality diode ensures module running safety > IP67 protection level > Heat dissipation > Long service life EVA anti-aging EVA, excellent weathering resistance TPT Product field: 1 - Gird-connected power generation system 2 - Off-grid power generation system 3 - Building-integrated power generation facilities

Company Contact:

• Posted By: Ningbo Kelan Solar Electric Co., Ltd.

• Phone: 86-574-86768338

• Address: 9, xinyi road, xienan industrial zone, daxie development zone, Beilun, Ningbo,China, Ningbo , Zhejiang , China

• Email:

• Website: https://www.monocrystalsolarpanel.com

• Business Description: Kelan Solar, established in 2008, is a professional green power producer of solar panel and solar module in Ningbo, China.

  Our main products are 2 -350 watt mono crystalline and poly crystalline silicon solar panels in standard or special sizes and shapes.
