Ultra High Thermal Conductivity Aluminum Pcb - China

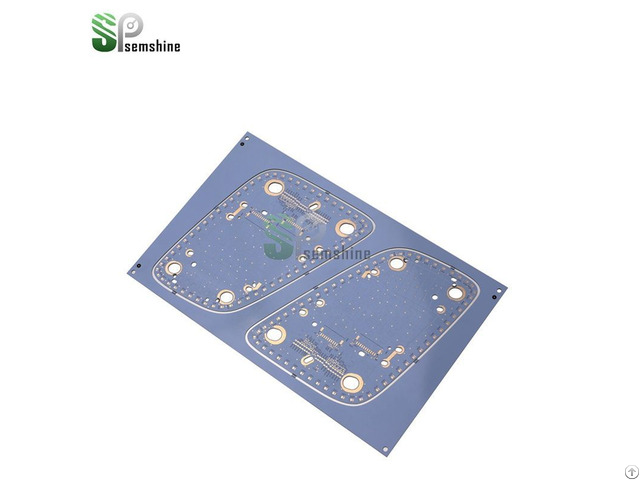

PCB description:

Model Number: aliuminum pcb

aluminum pcb manufacturer: Shenzhen Semshine Tech Co., Ltd

Place of Origin: Shenzhen, China

Brand Name: SEMSHINE

Base Material: Aluminum high TG

Layers: 1L

Copper Thickness: 1oz

Board Thickness: 0.3mm

Min.

Hole Size: 0.08mm

Min.

Line Width: 2 Mil

Min.

Line Spacing: 0.1um(3 Mil)

Surface Finishing: ENIG

Color: White Solder mask and Black silkscreen Item Aluminum substrate specifications:

Item Unit Specification Test condition

Insulation thickness pm Max Min 150

70 —

Solder resistance (288*C) Sec.

Min 600 IPC-TM-650 3.10.1.12

Thermal shock 288°C*107cycle Min 6 Times IPC-TM-650 2.4.13.1

Peel strength (Normal status) Ib/in Min 7.5 IPC-TM-650 2.4.8

Breakdown Voltage V/mil 750 IPC-TM-650 2.5.6

Volume resistivity (Normal status >E+14) Q • cm 1013 IPC-TM-650 2.5.17.1

Surface resistivity (Normal status >E+12) Q 一 IO” IPC-TM-650 2.5.17.1

Dielectric constant IPC-TM-650

1 MHz Normal status — 8.0 2.5.5.3

2.5.5.5

1 GHz Normal status 7.6 2.5.5 - S

Dissipation Factor IPC-TM-650 1 GHz Normal status 0.003 2.5.5.9

Water absorption % 0.2 IPC-TM-650 2.6.2.1

Thermal conductivity

(measured on insulation layer only) W/mcC 9.0 ASTM-E1461

Flammability 94V-0 Pass IPC-TM-650 2.3.9

Tg, c 160 IPC-TM-650 2.4.24

Td, c 350 TBD (5wt% loss)
