Ykssu 1519nl 2 5g Base T Power Over Ethernet Poe Rj45 Magjack Connectors - China

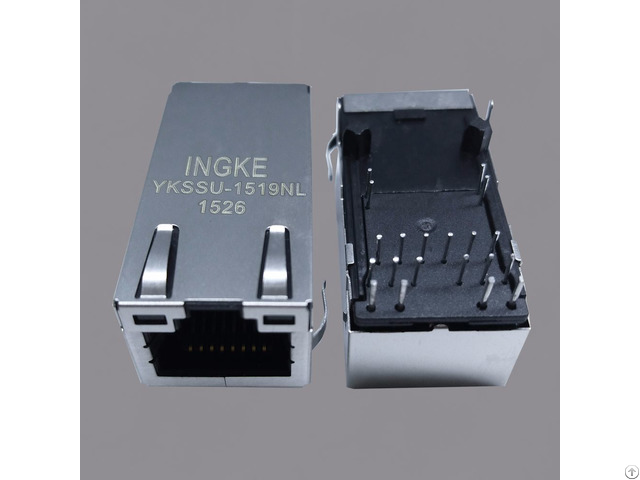

Ingke YKSSU-1519NL 2.5G Base-T, Power over Ethernet+ (PoE+) RJ45 Magjack Connectors Part Number : YKSSU-1519NL Made in China: YKSSU-1519NL Original Manufacturer: Ingke Technology Supply Ability: 185K-PCS/Month Packaging : Tray Connector Type: RJ45 Number of Ports : 1 Number of Rows : 1 Applications : 2.5G Base-T, AutoMDIX, Power over Ethernet+ (PoE+) Mounting Type : Through Hole Orientation: 90° Angle (Right) Termination : Solder Height Above Board: 0.535" (13.59mm) LED Color: Green, Yello-Green Number of Cores per Jack : 8 Shielding : Shielded, EMI Finger Features: Board Guide Tab Direction : Up Contact Material : Phosphor Bronze Contact Finish : Gold Operating Temperature : -40℃~85℃ Contact Finish Thickness : 30µin (0.76µm) Shield Material : Copper Alloy Housing Material : Thermoplastic Ingke Technology Mass production of the following models;ARJM11A3-809-AD-CW 2 ARJM11B3-809-AB-CW2 ARJM11B3-809-AD-CW2 ARJM11A1-809-NN-EW2 ARJM11B1-809-NN-EW2 ARJM11A1-805-AB-CW2 ARJM11B1-805-AB-CW2 ARJM11A1-805-NN-CW4 ARJM11B1-805-NN-CW4 ARJM11A1-809-NN-CW4 ARJM11B1-809-NN-CW4 ARJM11A1-805-JA-CW2 ARJM11B1-805-JA-CW2 ARJM11A1-809-JA-CW2 ARJM11B1-809-JA-CW2 ARJM11A3-805-JA-CW2 ARJM11B3-805-JA-CW2 ARJM11A3-809-JA-CW2 ARJM11B3-809-JA-CW2 ARJM11A3-805-KB-CW2 ARJM11B3-805-KB-CW2 ARJM11A3-809-KB-CW2 ARJM11B3-809-KB-CW2 ARJM11A1-805-KB-CW2

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
