Zbw Outdoor Prefabricated Substation - China

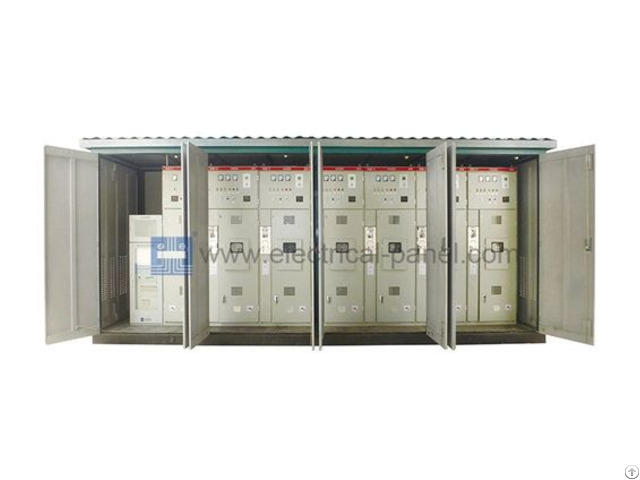

Zbw outdoor prefabricated substation

substation medium voltage electrical switch gear

the main features

fully sealed and fully insulated structure, no insulation distance, reliable protection of personal safety.

it can be used in both ring network and terminal, the conversion is very convenient, improve the reliability of power supply.

small loss, according to customer needs to provide loss level for the series of combined-type transformers for selection

industrial medium voltage electrical switch-gear can operate 200a load current and can be used as a load switch in case of emergency

double fuse protection reduces the operation cost

the cabinet adopts anticorrosive design and special spray paint treatment, which is widely applicable to all kinds of harsh environments

product introduction

outdoor prefabricated substation is divided into metal shell and non-metal shell, and the box body is high voltage chamber, transformer room and low pressure chamber, which are arranged in various ways.

environmental conditions for product use

ambient air temperature: not higher than +40℃, not lower than-25℃, the average temperature within 24 hours is not higher than +35℃

altitude: not more than 2000m above sea level

humidity: ambient air temperature shall not exceed 50% when the maximum temperature is +40℃, and the influence of accidental condensation caused by temperature change shall be considered

the vertical inclination of the equipment during installation shall not exceed 5 degrees

no fire and explosion hazard, serious pollution, chemical corrosion and violent vibration places.

product advantage of industrial medium voltage electrical switch-gear

the characteristic of complete equipment, beautiful appearance, safe and reliable operation, convenient maintenance and high selectivity

it has the advantages of small floor area, convenient moving load center, short construction period and less waste.

more information can view here.
