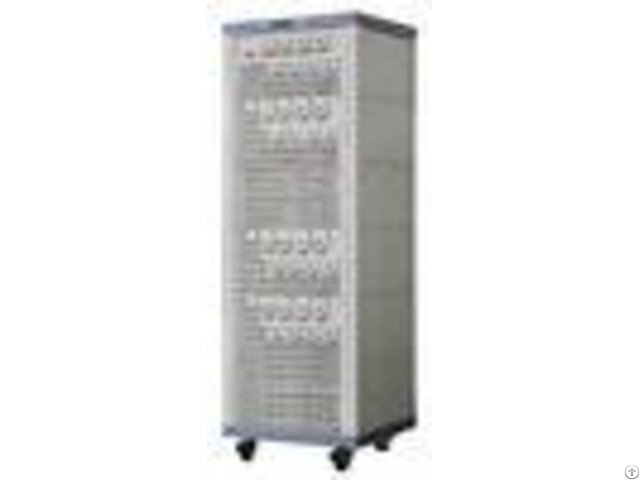

20v600a Rechargeable Battery Capacity Tester 1 Channel 500ms Min Pulse Width - China

1 Channel Battery Capasity Tester 20V600A Discharge Testing System (3A~600A, 0.1V~20V) Fast measure speed, wide measure range Technical Specifications: - - - - Specifications | Values | AC Input | AC 380V 10% / 50Hz | Input Power | 16709 | W | Resolution | AD: 16bitDA: 16bit | Input Impedence | 1M | Output Voltage | CV Output Range | 0.1V~20V | Min Discharge Voltage | 2.5V | Accuracy | 0.1% of FS | Stability | 0.1% of FS | Output Current | Output Range | 3A~600A | Accuracy | 0.1% of FS | CV Cut-off Current | 1.2A | Stability | 0.1% of FS | Output Power | Output Power | 12000W/channel | Stability | 0.2% of FS | Time | Response Time | Max current response time<20ms | Working Step Time | (365*24)hour/step; Time format: 00: 00: 00.000(h, min, s, ms) | Record | Data Record Conditions | Min data record t: 100ms | Min data record V : 40mV | Min data record I: 1200mA | Frequency | 10Hz | - - - - Charge and Discharge Mode: Charge Mode: CC, CV, CCCV, CP End Condition: Voltage, Current, t, Capacity, -V Discharge Mode: CC, CP, CR End Condition: Voltage, Current, t, Capacity, -V Pulse Test Mode: Pulse Charge Mode: CC, CP Pulse Discharge Mode: CC, CP Min Pulse Width: 500ms Max Pulse Number: 32 pulse in a single step Continuous switched for charging and discharging in a single pulse step End Condition: Voltage, Relative time Primary Applications: # # Current & Voltage # Pulse Test # Direct Current Internal Resistance) # Capacity and Specific Capacity # Battery Cycle Life # Formation & Grading # Over-charge, Over-discharge Performance Features: # HPPC, Capacity, Cycle Life, Formation & Grading, Over-charge, Over-discharge # Market-proven Testing System # <=20ms Response Time to Meet Rapidly Changing Power Requirements # 0.1% Full-scale Accuracy for Current & Voltage # 10Hz Data Acquisition Frequency, 100Hz Optional # 500ms Minimum Pulse Width # More Than 1 Million Records Can Be Processed # 'And', 'or', '', '' and '=' supported; # Condition switches works with step accumulated time; # Up to 5 condition switches for each step; # Go to break supported.
