Av6471 Fiber Optic Fusion Splicer 2 8kg With Battery Cmos Sensor - China

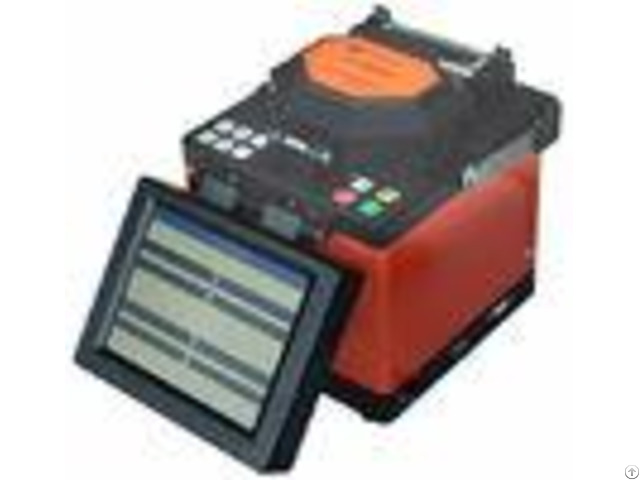

AV6471 Optical Fiber Fusion Splicer Only 2.8kg With Battery AV6471 is an optical fiber splicing device with a brand new design.

With powerful functions and super low splicing loss, it is highly competent for construction of trunk lines and FTTx.

Lightweight and compact, it is easy to use even in confined space.

The novel fiber imaging system makes the image clearer.

The real-time embeded Operating System provides a friendly man-machine interface and abundant functions.

The built-in large capacity Li-Ion battery can support long-time field work.

The real-time compensation system for temperature, humidity and air pressure has greatly enhanced the device against unfavorable environment changes and thus guarantees its consistency of low loss splicing in various environments.

Main Features: New fully-digitalized design; Small in size, lightweight: only 2.8kg with battery; Takes only 8 seconds for splicing, 25 seconds for pyrocondensation; Can set automatic start of splicing or of pyrocondensation upon close of the cover; Simultaneous display of X/Y axis; zoom in up to 304 times original size; Real time discharging for adjustment; no need for further adjustment; Electrode has a long life; discharging times up to 4000; With USB and VGA ports; 5.7 inch digital high resolution LCD; Precise real-time display of remaining battery capacity; Built-in high capacity battery, which enables up to 220 times of splicing and heating; Technical Highlights: HD Optical Image Acquisition System HD aligner for double separate optical fibers High performance CMOS sensor Sensor pixels 640*480 Len Imaging Optical Fiber Aligning System Fast evaluation of fiber profile Precise fiber alignment Precise evaluation of splicing loss Real-time Discharging Correction System High performance discharging electrode AC-DC mix discharging technique Current feedback and environment compensation Technical Parameter: - - - -

Applicable Fiber | SMF(ITU-T G.

652), MMF(ITU-T G.

651), DSF(ITU-T G.

653), NZDSF | Average Splicing Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) | Return Loss | <-60dB | Operation Mode | Auto, Half auto, Manual | Align Mode | Advanced PAS align mode.

| Fiber Diameter | clad diameter: 80m150m, coating diameter: 100m1000m | Cleave Length | 816mm(coating diameter<250m), 16mm(coating diameter 2501000m) | Magnification | Vertical 152times, horizontal 304times.

| Image Display | 5.7 640*480 LCD.

| Pull Test | Standard 2N(optional).

| Pyrocondensation Tube | 40mm, 60mm and a series of micro Heat-Shrinkable Tubing.

| Battery Capacity | Typically splice 220 times, charging for 3.5 hour(available when charge).

| Battery Lifetime | Cycle life up to 300500 times, replaceable.

| Electrode Lifetime | >4000 times, replaceable | Lighting for Construction | Built-in super High-brightness LED supply convenient for night work | Ports | USB, VGA | Power Supply | Built in 11.1V Lithium Ion Battery.

AC adopter(input AC100240, output DC13.5V/4.5A) | Environment Adaptation | Temperature range: -1050;Humidity: 95%R H(40, no condensing);Altitude: 0500 0m | Size | LWH=160150140(mm) | Weight | 2.3kg(no battery ), 2.8kg (including battery) | - - - - Indent Information: Main body: AV6471 Fiber Splicer Standard equipment: - - - -

Key | Description | QTY | 1 | AV6471 optical fiber fusion splicer | 1 | 2 | AC power adapter | 1 | 3 | AC current cable | 1 | 4 | Standby electrode | 1 | 5 | Blower brush | 1 | 6 | Bottle with siphon | 1 | 7 | Fiber bracket | 1 | 8 | Users manual | 1 | 9 | Luxury tote kit | 1 | - - - - Optional equipment: - - - -

Key | Description | Remark | 1 | Fiber Cleaver | AV33012 | 2 | Li-Ion battery | 11.1/10AH | 3 | Tool kit | / | - - - - Typical Application: AV6471 Fiber Splicer is mainly applied in fiber cable construction, fiber line maintenance, emergency repair of fiber cables and tests and production of optical fiber components.
