Av70519 50w High Power Load - China

price: check with company for price

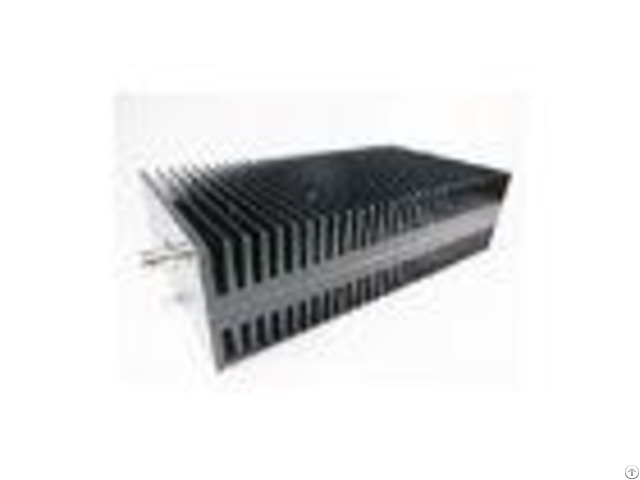

Av70519 50w High Power Load

Products Photos Catalog Av70519 50w Power Load Photos Catalog

50W High Power Load - - - - Features: DC to 18 GHz, up to 25W Consistent, repeatable performance High reliability General Description: From DC to 18GHz, AV70519(A) series high power load can stand the power up to50W.

Thick-film fabricating process is crucial in developing and manufacturing high power components.

By the use of thick-film fabricating process, the attenuation networks are printed on a special medium material, which feature high heat conducting performance.

Specifications: (Condition s: Ta= 25) - - - - parameter | AV70519 | AV70519A | Frequency range | DC-18GHz | DC-18GHz | VSWR | 1.3 | 1.3 | Average Power | 50W | 50W | characteristic impedance | 50 Ohm | 50 Ohm | Connector Type | N(f) | N(m) | - - - - Typical Performance: (Conditions: Ta= 25) Absolute Maximum Ratings: - - - - | min | max | RF Input power | - | 50W | operating temperature | -20 | +70 | storage temperature | -40 | +85 | - - - - Pin Descriptions: - - - - AV70519 | RFIN | N(f), 50 Ohm | AV70219A | RFIN | N(m), 50 Ohm | - - - - Outline Drawing: AV70519 (Unit: mm) AV70519A (Unit: mm) Ordering Information: - - - - Model Number | Name | Product Sate | AV70519 | 50W N(F) Load | Produce | AV70519A | 50W N(M) Load | Produce | - - - - Notes: 1 - HEAT DISSIPATION MEASURES IS NECESSARY.

2 - ELECTROSTATIC SENSITIVE DEVICE OBSERVES HANDLING PRECAUTIONS.

3 - PRODUCT SPECIFICATIONS AND DESCRIPTIONS IN THIS DOCUMENT ARE SUBJECT TO CHANGE WITHOUT NOTICE.

| - - - -
