Av71301 Power Divider Frequency Range 0 5 2 5ghz - China

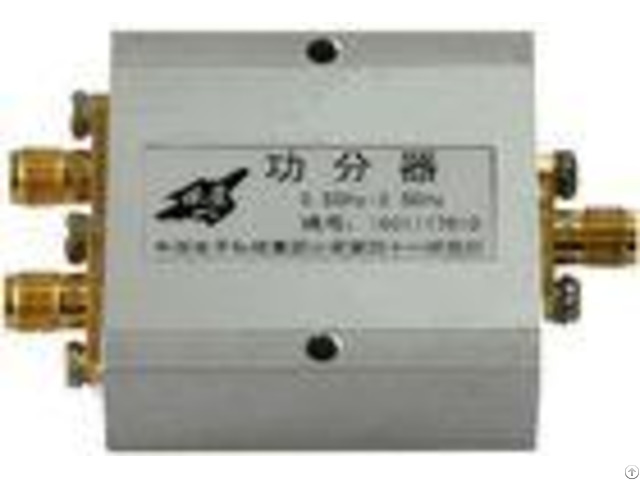

AV71301 Power Divider Features: Frequency Range: 0.5-2.5GHz Small Size: 41mm41mm(Exclude Connector) Insertion Loss: 3.8dB Amplitude Balance: 0.2dB Phase Balance: 4deg General Description: The AV71301 power divider, characterized by low insertion loss, small size, good amplitude balance and phase balance, is ideal for power dividing or combining.

Functional Diagram: The AV71301 power dividers adopt the Wilson structure.

The input signal is divided into two way signals with equal amplitude and phase.

The resistance R is used for isolation.

The dividers possess 3dB insertion loss and good isolation.

Specifications: (Condition s: Ta= 25) - - - -

Frequency

Range

(GHz) | Isolation

(dB Min.

) | Return Loss

(Max.

) | Insertion

Loss

(dB Max.

) | Amplitude Balance

(dB) | Phase Balance

(Deg) | Way | 0.5-2.5 | 20 | 15.5(in&out) | 3.8 | 0.2 | 4 | 2 | - - - - TypicalPerformance: (Condi tions: Ta= 25) Absolute Maximum Ratings: - - - - | Min.

| Max.

| RF Input Power | - | 34 dBm | - - - - Port Descriptions: - - - -

RFc | RFin, SMA female DC coupled.

| RF1, RF2 | RFout, SMA female DC coupled.

| - - - - Outline Drawing: AV71301 (Unit: mm) Ordering Information: - - - -

AV71301 | Power Divider Module | - - - - Notes: 1 - FAVORABLE HEAT DISSIPATION IS REQUIRED WHEN THE DIVIDERS WORK AT THE MAX RF INPUT POWER.

2 - PROTECT THE CONNECTORS FROM STRIKING.

3 - PRODUCT SPECIFICATIONS AND DESCRIPTIONS IN THIS DOCUMENT ARE SUBJECT TO CHANGE WITHOUT NOTICE.
