Av81310 Power Divider Amplitude Balance 0 5 Frequency Range Ghz Dc 24 - China

price: check with company for price

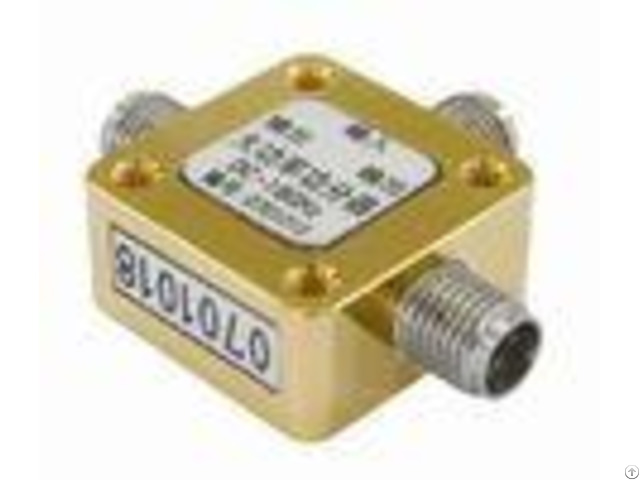

Av81310 Power Divider Amplitude Balance 0 5 Frequency Range Ghz Dc 24

Products Photos Catalog Av81310 Power Divider Photos Catalog

AV81310 Power Divider Functional Diagram: The input signal is divided into 2 signals with equal amplitude and phase signals by impedance transform.

The resistance between two ways is 50 ohm, which causes 3dB energy loss.

The theoretical insertion loss is 6dB.

TypicalPerformance: (Condi tions: Ta= 25) Absolute Maximum Ratings: - - - - | Min.

| Max.

| RF Input Power | - | 27 dBm | - - - - Port Descriptions: - - - - RFc | RFin, 3.5mm female, DC coupled | RF1, RF2 | RFout, 3.5mm female, DC coupled | - - - - Outline Drawing: AV81310 (Unit: mm) Ordering Information: - - - - AV81310 Power Divider | Power Divider Module | - - - - Notes: 1 - FAVORABLE HEAT DISSIPATION IS REQUIRED WHEN THE DIVIDERS WORK AT THE MAX RF INPUT POWER.

2 - PROTECT THE CONNECTORS FROM STRIKING.

3 - PRODUCT SPECIFICATIONS AND DESCRIPTIONS IN THIS DOCUMENT ARE SUBJECT TO CHANGE WITHOUT NOTICE.


Company Contact:


  • Phone: 86-27-86659761

  • Address: ROOM 1507 TOWER A, OPTICS VALLEY INT’L PLAZA NO.889 LUOYU ROAD EAST LAKE HIGH-TECH DEVELOPMENT ZONE,, Wuhuan , Hubei , China

  • Email: Email


Published date: February 8, 2018

  • Business Description: More than a decade, the company in the process of security and protection products and related products exports, has accumulated rich experience, has won the good reputation.

    We will wholeheartedly provide you with quality products and efficient service.
