Av81313 Power Divider Frequency Range Dc 50ghz - China

price: check with company for price

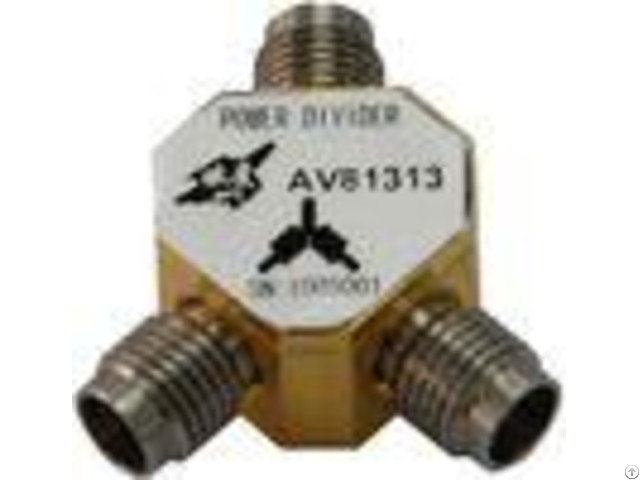

Av81313 Power Divider Frequency Range Dc 50ghz

Products Photos Catalog Av81313 Power Divider Photos Catalog

AV81313 Power Divider General Description: The AV81313 power divider adopts the resistance structure.

The input signal is divided into 2 signals with equal amplitude and phase by impedance transform.

The dividers are appropriate for broad band signal dividing or combining.

Functional Diagram: The input signal is divided into 2 signals with equal amplitude and phase signals by impedance transform.

The resistance between two ways is 50 ohm, which causes 3dB energy loss.

The theoretical insertion loss is 6dB.

Specifications: (Condition s: Ta= 25) - - - - Frequency Range (GHz) | Isolation (dB Min.

) | Return Loss (Max.

) | Insertion Loss (dB Max.

) | Amplitude Balance (dB) | Phase Balance (Deg) | Way | DC-50 | 9 | 10(in) | 7.7 | 0.6 | 5 | 2 | - - - - Typical Performance: (Conditions: Ta= 25) Absolute Maximum Ratings: - - - - | Min.

| Max.

| RF Input Power | - | 27 dBm | - - - - Port Descriptions: - - - - RFc | RFin, 2.4mm female, DC coupled | RF1, RF2 | RFout, 2.4mm female, DC coupled | - - - - Outline Drawing: AV81313 (Unit: mm) Ordering Information: - - - - AV81313Power Divider | Power Divider Module | - - - - Notes: 1 - FAVORABLE HEAT DISSIPATION IS REQUIRED WHEN THE DIVIDERS WORK AT THE MAX RF INPUT POWER.

2 - PROTECT THE CONNECTORS FROM STRIKING.

3 - PRODUCT SPECIFICATIONS AND DESCRIPTIONS IN THIS DOCUMENT ARE SUBJECT TO CHANGE WITHOUT NOTICE
