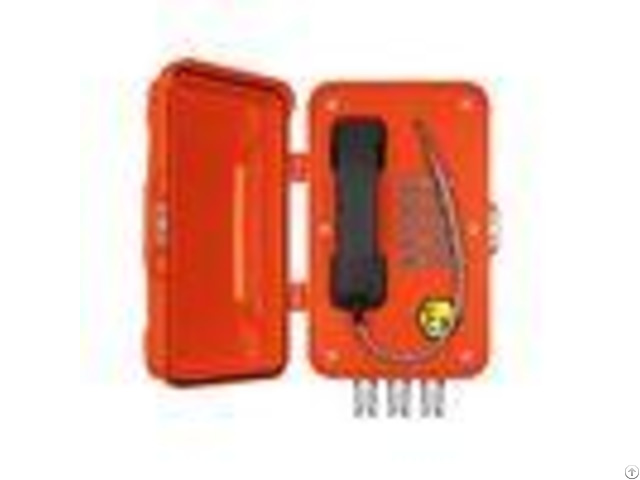

Corrosion Resistant Atex Outdoor Analog Phone Wall Mounting Ex Proof Telephone - China

Corrosion Resistant Analog EX-proof Telephone for Hazardous Areas, ATEX Anti-explosion Phone

This Analogue Industrial Explosion-proof Telephoneis designed for voice communication in the hostile environment where reliability, efficiency and safety are of prime importance.

The telephone can handle the large temperature differences found outdoors, high humidity, exposure to sea water and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.

MAIN FEATURES

- Corrosion resistant aluminum alloy die casting housing, available in four colors, with NPT conduit entries and Type 3 / IP67 environmental ratings

- Certificated for use in Hazardous areas of Gas Group IIB/IIA

- Zone classification: Zone 1, Zone 2 and Zone 22

- Ex d protected

- Intrinsically safe Exib certified - Temperature classification: T6

- SIP or H323 protocols (Compatible with all PBXS)

- Power supply: Phone Line Powered

- Handset with Noise canceling microphone, for effective communication from noisy areas (Armored SS cord stands up to rough treatment, optional for black curly cord )

- Completely programmable weatherproof keypad designed to be used with gloves

- No.

of keys (TOTAL 15KEYS): 0-9, *, #, Redial, Mute, Last Number Redial

- Hermetically sealed non-contact hook sensing switch improves system reliability

- Mounting: Wall/column/structural


- Captive cover screws prevent loss during installation

- Dimension: Approx.

246*339*126mm (H*W*D) - Weight: 8Kg.

(Approx) This product has the following explosion protection:

II 2G Rx e ib [ib] mb IIC T6 Gb

III 2D Ex ib [ib] tb IIIC T135 -40 C Ta +60 C/+40C

Zone 1, 2, 22 APPLICATIONS

1 - Suitable for explosive gas atmospheres Zone 1, 2, 22.

2 - Suitable for temperature class T1 ~ T6.

3 - Widely used in oil exploration, chemical, military, pharmaceutical, oil refining and other hazardous environments and depots, offshore oil platform, oil tankers and other related industrial application, etc.

TECHNICAL SPECIFICATION - - - -

Analogue Version | Power Supply | From the analogue telephone network | Supply Voltage | 24 VDC to 65 VDC | Supply Current | 20 mA DC to 100 mA DC | Ringer Volume | - 80dB(A) at a distance of 1 m

- 110dB(A) at a distance of 1 m (for external horn speaker) | Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.

23 - | - - - - - - - -

Ambient conditions | Protection type | IP 66 as per EN60529 | Operating temperature | -40C to +70C | Storage temperature | -45C to +85C | - - - - OPTIONAL

- Add Horn & Lamp on the top - Key lockable latch

- Upper & lower internal mounting plates

- Flat label area or custom embossed logo on door

- Vandal resistant screws for upper mounting plate PACKAGE

Unit Size: 246*339*126mm (H*W*D)

Carton Dimension: 200 * 300 *440 mm (H * W * D)

Packaging materials: pearl cotton, carton

Net Weight: 7 KG

Gross weight: 8 KG
