Diode Module Md3 250 36 C1 - Ukraine

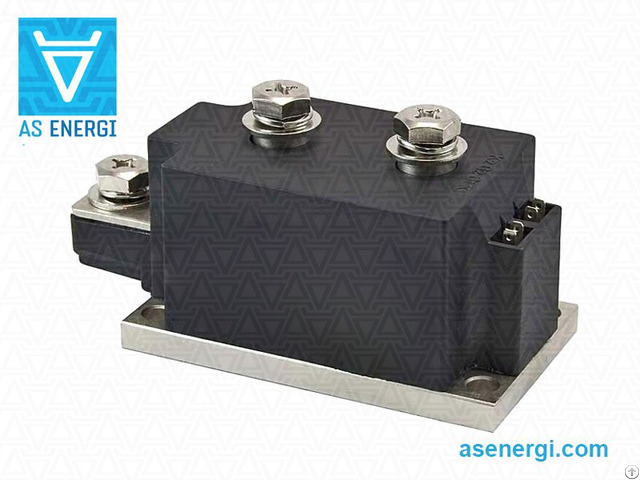

Power rectifier diode module MD3-250-36-C1 in an international standard package, 250A 3600V.

Used to convert DC and AC currents up to 250 ampere, with a frequency of up to 500 Hz on circuits with voltages up to 3600 volt (36 class).

Diode modules MD3-250-36-C1 are in a standard package C1: base dimensions 50x92 mm, housing height – 52 mm, weight – 0.86 kg.

Two-position module is a monolithic construction of two semiconductor diodes: type diode-diode.

Module connection diagram MD3-250-36-C1 – half-bridge.

Series (ratings) of diode modules: MD3-250-30-C1 (250A 3000V), MD3-250-32-C1 (250A 3200V), MD3-250-34-C1 (250A 3400V), MD3-250-36-C1 (250A 3600V).

High thermal cyclic resistance and reliable operation of low-frequency diode modules MD3-250-36-C1 when switching high currents is achieved due to their design features and stable parameters of galvanic isolation.

The MD3-250-36-C1 diode modules have a clamp-on design that provides easy mounting and good contact with the cooler for heat dissipation.

Several modules can be mounted on one cooler without additional insulation, which significantly reduces the overall dimensions of the assembly.

Between the module and the heat sink (heat sink) it is recommended to use a thermally conductive substrate lubricated with thermal paste.
