Double Range Neware Battery Tester 5v 12a 0 1 Percent Full Scale Accuracy For Current And Voltage - China

Neware Double Range Battery Cycler 5V / 12A Cycle Life Capacity Testing System Background of Neware NEWARE is a testing solutions provider.

Since 1998, NEWARE has been committed to providing world-class battery testing equipment.

And these efforts have been rewarded with more than 100, 000 sets of testing equipment and over 20, 000 customers ranging from battery/capacitor manufacturers, auto makers to R&D institutes.

Moreover, we are now strengthening integrated experiences both on data management and testing activities involving with third parties.

Through this, we provide you highly automated testing system in manufacturing processes and smart testing center enabling you handle complex tests and data.

Reliable and flexible testing solutions are what we do for a sustainable future.

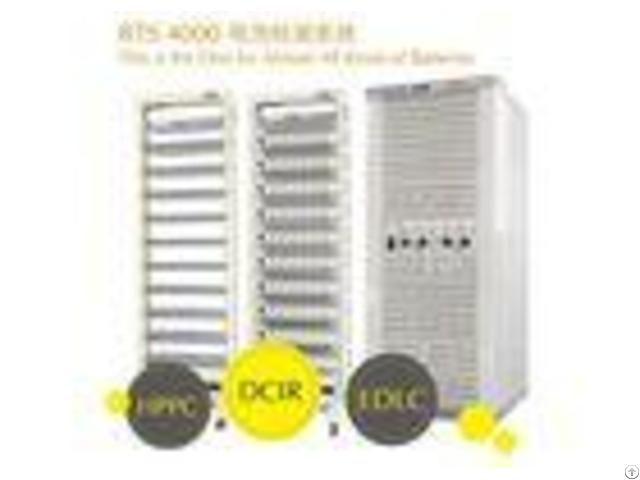

BTS 4000 Series Introduction # BTS 4000 entered into market in the year of 2008 - Now it is one of the most successful and most popular battery testing system in China.

Thousands of battery manufacturers, battery research institutes and laboratories use it as their primary testing partner for their various testing activities.

# BTS 4000 is based on Neware forth generation testing system, and was introduced into the market in 2008 - # BTS-4000 supports EV battery pulse testing, DCIR (direct current internal resistance) testing, Cycle life testing, Rate testing.

# BTS-4000 is now widely used by research institutes, colleges, universities and EV battery manufacturers all around the world.

Neware Double Range Battery Cycler 5V / 12A Cycle Life Capacity Testing System CT-4008-5V12A-DB Specifications: - - - - Project Index | Parameter Index | Input Power | AC 220V 10% / 50Hz or AC 110V 10% / 50Hz | resolution | AD: 16bitDA: 16bit | Input Resistance | 1M | Voltage | Per Channel Control Voltage Range | 25mV~5V | Minimum discharge voltage | 2.5V | Accuracy | 0.05% of FS | Stability | 0.05% of FS | Current | Per Channel Current Range | Range 1: 5mA-1A, Range 2: 1A-12A | Constant current cut-off current | Range 1: 2mARange 2: 24mA | Accuracy | 0.05% of FS | Stability | 0.05% of FS | Power | Per Channel Output Power | 60 | W | Stability | 0.1% of FS | Time | Current Response Time | 1ms (0-Full Range) | Step Time Range | (365*24 )hour/step, Time Form Support 00: 00: 00(h, min: s, ms) | Data Recording | Record Condition | Timet: 100ms | VoltageU: 10mV | CurrentI: Range 1: 2mARange 2: 24mA | Record Frequency | 10Hz | - - - - Primary Applications: # # Current & Voltage # Pulse Test # DCIR Testing(direct current internal resistance) # Capacity and Specific Capacity # Cycle Life # Formation & Grading # Over-charge, Over-discharge Features: HPPC, Capacity, Cycle Life, Formation & Grading, Over-charge, Over-discharge Market-proven Testing System <=20ms Response Time to Meet Rapidly Changing Power Requirements 0.1% Full-scale Accuracy for Current & Voltage 10Hz Data Acquisition Frequency, 100Hz Optional 500ms Minimum Pulse Width More Than 1 Million Records Can Be Processed - - - - Pulse | Charge | CCC | Discharge | CCD | Minimum Pulse Width | 500ms | Automated Switch | Automated switch from charge to discharge for each pulse | End Condition | Voltage, Test Time | - - - - Software Features # # Each channel available for indepent program testing, Step continuable after Pause in any conditions(including blackout).

# Host computer adaptable to all kinds of lower machine, with interactive interface, easy to operate.

# Fast data acquisition, sensitive to the changing of current & voltage, (AD, 16bit), dairy function available.

# Powerful for data and chart processing, support four types of report with various form formats.

# As an added bonus, professional tool software would be provided free of charge.
