Ev Battery Pack Tester Energy Saving - China
price: check with company for price

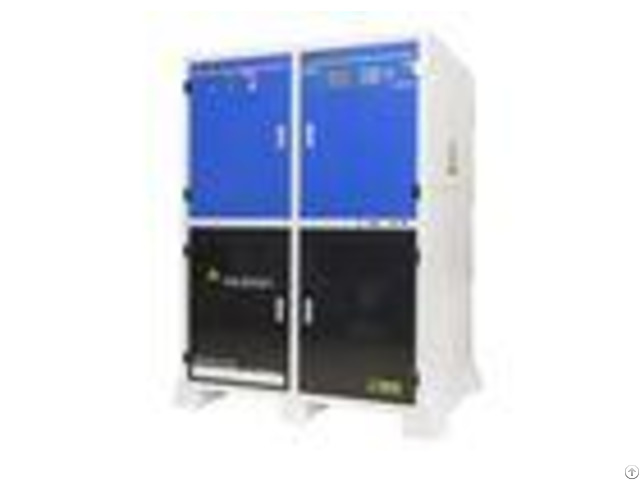

EV Battery Pack Tester Energy Saving 100V / 400A Cycle Life Test Brief Introduction: Neware's IGBT series is a high precision system specifically designed for secondary battery modules and pack tests.
Accurate sources and measurements ensure the test quality that is suitable to perform repetitive and reliable tests that are crucial for battery modules / packs, for inspections as well as capacity, performance, production and qualification testing.
Specifications: - - - - AC Input | AC 380V10% 50Hz | Single-phase Power | 40 | KW | Single-phase Current | 68 | A | Input Power | 44 | KW | Voltage | Range | Charge: 10V~100V Discharge: 10V~100V | Accuracy | 0.1% of FS | Stability | 0 - 1% of FS | Current | Range | Charge: 2A~400A Discharge: 2A~400A | Accuracy | 0.1% of FS | Stability | 0.1% of FS | Power | Output Power Per Channel | 40KW | Stability | 0.2% of FS | Time | Rise Time | 10ms (0~Full Range) | Step Time | (365*24) hours/step | Time Format 00: 00: 00 (h: min: s) | Aux Channel | Aux Input | Temperature, Voltage | Temperature Range | 25~110 | Temperature Accuracy | (1% of reading + 1) | Temperature Resolution | 0.1 | Voltage Range | 10mV~5V | Voltage Accuracy | 0.1% of FS | Data Acquisition | Intervals | Time Interval t: (0.1s~60000s) | Voltage Interval U: (0.2V~100V) | Current Interval I: (0.8A~400A) | Frequency | 10Hz | Charge | Modes of Operation | CCC, CVC, CC&CVC | End Conditions | Main Channel: Voltage, Current, Test Time, Capacity | Aux Channels: Temperature, Voltage | Discharge | Modes of Operation | CCD, CPD, CRD | End Conditions | Main Channel: Voltage, Current, Test Time, Capacity | Aux Channels: Temperature, Voltage | Cycle | Cycles | 1~65535 | Steps | 254 | Nested Function | Max three levels of loops | - - - - Battery Pack Applied: EV battery module Electric scooter/ bike UPS Electric gardening tools Energy storage battery Power tools Car battery Lead-acid battery Application # # Drive cycle simulator # Life cycle test # DCIR test # Capacity test # Performance test # Reliability test # Over charge/dischargetest # Temperature Test Key Features: # # Regenerative battery energy discharge # 60% Energy saving # Environment protection # Channels paralleled for higher currents # Charge / discharge mode (CC, CV, CCCV, CP) # Driving cycle simulation # High precision measurement accuracy 0.1% of FS # Fast current conversion # Smooth current without over shoot # Testing data analysis function # Data recovery protection # Multi-channel control in one interface and multi-channel control independently # BMS data reading and recording Equipment Picture:
Company Contact:
- Posted By: Neware Technology Limited company
- Phone: 86-755-83109966
- Address: 15/F, Tower 3, Excellence City, No.128, Zhongkang Rd., Shenzhen, CHINA 518049, Shenzhen , guangdong , China
- Email:
Published date: March 19, 2018
- Business Description: Introduced to the market in 2006, the most cost-competitive cell and battery test equipment, BTS3000 is now the most popular type in the battery testing field, and it serves for research institutes, universities and battery manufacturers all around the world.
Related listings
-
Neware Lead Acid Battery Test EquipmentDiscrete semiconductor devices - Neware Technology Limited company - China - March 19, 2018 - check with company for priceNeware Battery Module Cycler 50V60A DCIR and Pulse Test Supported Up to 60A, up to 50V, 2 Channels. Rate Test, DCIR, Pulse Test. Cycle Life Test. Discharge Min Voltage can be customerized to 0V. Temperature measurement auxiliary can be intergrated. C...
-
High Accuracy Neware Battery Testing SystemDiscrete semiconductor devices - Neware Technology Limited company - China - March 19, 2018 - contact company for priceNeware BTS-9000 for Battery Material Test System 0.05% High Accuracy BTS9000 is based on Neware 6th-generation testing system. Its designed for battery material research, high-precision tests, pulse charge/discharge tests, DCIR test, and cycle life t...
-
Coin Cell Battery And Charging System Tester Highly Dynamic Measuring EquipmentDiscrete semiconductor devices - Neware Technology Limited company - China - March 19, 2018 - check with company for priceNeware Coin Cell Cycle Life Tester Battery Analyzer for Charge and Discharge Testing Brief Introdution: Neware Battery Tester Cycle tests provide information about the battery such as its internal chemistry, capacity, number of useable cycles, and li...
