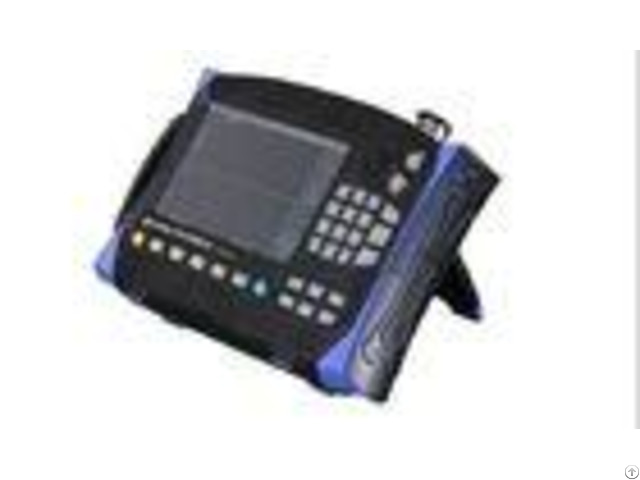

AV3680A Cable and Antenna Analyzer Product Overview: AV3680A Cable and Antenna Analyzer has advantages of fast measuring speed, high measurement accuracy, small size, light weight, battery power, touch screen operation and adjustable backlighting.

It can measure return loss, standing wave ratio (SWR), impedance, phase, DTF (discontinuity point fixing), etc.

It is developed for onsite test and suitable for measuring the feeder line system of various communication base stations including trunking, GSM, PCS/DCS, CDMA, GPRS, WCDMA, CDMA2000, TD-SCDMA, LTE and paging system.

AV3680A Cable and Antenna Analyzer can help the users make quick evaluation on the state of the transmission line and antenna system, improve the maintenance efficiency of the base station in operation and accelerate the installation and debugging process of the new base station during the installation, debugging and daily maintenance of the feeder line system.

Technical Specifications: - - - - Model & Name Technical Index | AV3680A Cable and Antenna Analyzer | Frequency Range | 1MHz4GHz | Frequency Accuracy | Original Frequency Error | 210-6 (23) | Temperature Stability | 110-6/10(for 23) | Frequency Resolution | 1kHz | Main Index After Calibration | Directivity | 42dB | Source Match | 31dB | Reflection Track | 0.08dB | Sweep Time | <1ms/CW(10kHz IF Bandwidth) | Power Supply | Adaptor | AC: 110V(110)or 220V(110), 50Hz(15) | Internal Battery | Operation Time: about 6 hours | Dimension | Length Width Depth =290mm190mm70mm | Weight | 2.5kg(with battery) | Operation Temperature | -10+55 | Storage Temperature | -40+70 | EMC | Conform to GJB3947A-2009 | | | | | - - - - Ordering Information: Base Unit: AV3680A Cable Antenna Analyzer 1MHz4GHz Standard Configuration - - - - Item | Description | Quality | Standard Accessories | Three-wire Power Cord | 1 | AC-DC Power Adapter | 1 | Users Guide | 1 | CD | 1 | USB Cable | 1 | Internal Rechargeable Lithium Ion Battery | 1 | Car Charger | 1 | Certification | 1 | - - - - Options - - - - No.

| Description | Note | 1 | USB Power Measurement Software | | 2 | USB CW Power Sensor AV87231 | 10MHz~18GHz | 3 | English-version Options | English software English users guide | 4 | N-DINA Adaptor | N-DIN Adaptor | 5 | Rechargeable Lithium Ion Battery | Backup Battery | 6 | Calibration Kits | N-type (Male) Calibration Kit AV20201A | DC-9GHz | 7 | N-type (female) AV20201B | DC-9GHz | 8 | N-type (Male) Calibration Kit AV31101A | DC-18GHz | 9 | N-type(Female) Calibration Kit AV31101B | DC-18GHz | 10 | Multifunctional Soft Bag | | 11 | Hard Shipping Case | | 12 | GPS Antenna | | 13 | Low-loss Cable N-JK(80cm) | Extendable Cable of Test Port | 14 | Low-loss Cable N-JJ(80cm) | Extendable Cable of Test Port | - - - - FDR Frequency Domain Reflectometer (FDR) is similar to Time Domain Reflectometer (TDR) in the name, and both are used for measurement of transmission line.

TDR sends excitation signal of DC pulse which can be used to measure the On/Off and off position of a cable but is insensitive to RF problems that may result in fault and performance degradation of RF communication equipment.

While FDR adopts sweep signal for measurement, by getting time domain specification through complex mathematical operation, it may detect sight performance degradation of RF in system so as to do timely maintenance, thereby saving high maintenance cost of damage due to delayed repair of RF cable.
