High Performance Microprocessor Chip Vector Network Analyzer Full Two Port Calibration - China

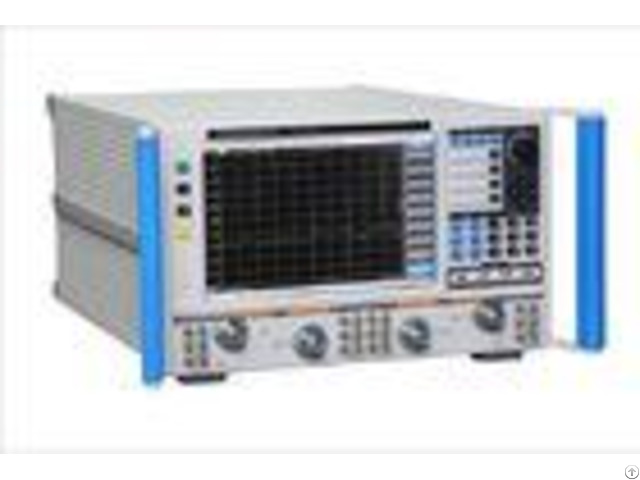

High Performance Microprocessor chip Vector Network Analyzer full two port calibration AV3672A/B/C/D Vector Network Analyzer Product Overview: AV3672 series Vector Network Analyzer include AV3672A(10MHz13.5GHz), AV3672B(10MHz26.5GHz), AV3672C(10MHz40GHz)and AV3672D(10MHz50GHz.

They arew new generation of products produced by the 41st Institute of CETC based on many years of scientific research and production experience in vector network analyzer.

In terms of hardware, brand-new design concept and technical proposal have upgraded key performance indexes (KPI) of complete machine such as measuring speed, dynamic range and measurement stability; in terms of software, embedded computer system (ECS) with high-performance microprocessor chip and Windows-based operating system have greatly improved interconnectivity and easy use of complete machine.

AV3672 series Vector Network Analyzer provide multiple calibration types including frequency response, single port, response isolation, enhanced response and full two-port calibrations; offer many display formats such as logarithmic amplitude, linear amplitude, standing-wave ratio (SWR), phase, group delay, Smith chart and poplar coordinates, etc.

; are designed with several kinds of standard interfaces: including USB, LAN, GPIB and VGA, available in multifunction parameter testing of mixer/converter, active intermodulation distortion and harmonic distortion, gain compression two-dimensional sweep and pulse network S-parameters, which allows it to accurately measure the amplitude-frequency characteristics, phase-frequency characteristics and group delay characteristics of microwave network.

They are widely used in the field of transmitting/receiving (T/R) module measurement, measurement of dielectric material properties, measurement of microwave pulse characteristics, photoelectric properties measurement, which is absolutely necessary for the scientific research and production process of phased array radar, communications, microwave and RF components and parts.

Ordering Information: - - - - Main Unit | Description | AV3672A | Vector network analyzer(10MHz ~ 13.5GHz) | AV3672B | Vector network analyzer(10MHz ~ 26.5GHz) | AV3672C | Vector network analyzer(10MHz ~ 40GHz) | AV3672D | Vector network analyzer(10MHz ~ 50GHz) | - - - - Standard Configuration - - - - No.

| Description | Remarks | 1 | Power cord assembly | Standard three-core power cord | 2 | USB keyboard/mouse | | 3 | User's manual | | 4 | Certificate | | - - - - AV3672C Options - - - - Model | Description | Remarks | AV3672C-201 | 2-port programmable Step attenuator | Set two 60dB programmable step attenuators on the source path, two 35dB programmable step attenuators on the receiver path | AV3672C-400 | 4-port test | Two-source stimulus four-port VNA configuration | AV3672C-401 | 4-port programmable step attenuator | Set four 60dB programmable step attenuators on the source path, four 35dB programmable step attenuators on the receiver path(option 400 is needed) | AV3672C-008 | Pulse test | For pulse S-parameter measurement | AV3672C-S10 | Time domain test | For time-domain test to determine the discontinuous location in device, fixture or cable and make analysis | AV3672C-S80 | Offset frequency test | For the test of frequency offset, millimeter-wave frequency extension main unit needs this option | AV3672C-S86 | Gain compression two-dimension sweep test | For the gain compression two-dimension sweep test of amplifier | AV31123 | 2.4mm calibration kit | For the calibration of analyzer | FE0BN0BM025.0 | 2.4mm testing cable | For testing with the analyzer | FE0BN0BL025.0 | 2.4mm testing cable | For testing with the analyzer | AV20404 | E-cal kit | For calibration of analyzer(45MHz-40GHz 2 ports) | - - - - - - - - | | | - - - -
