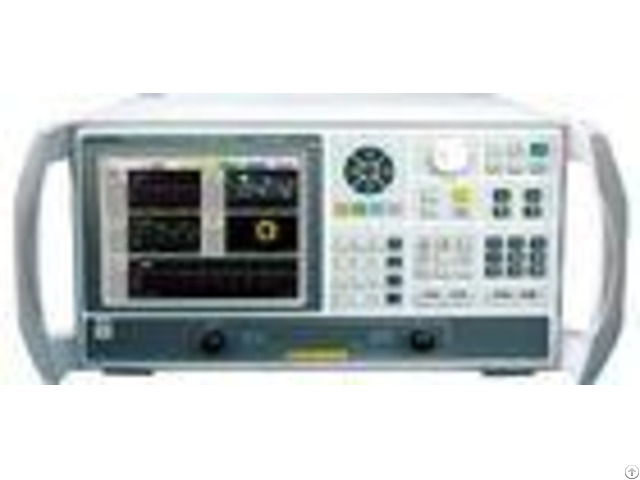

AV3629A Integrated Vector Network Analyzer Details 64 independent test channels Wide dynamic range Windows operation system Excellent TFT color display Friendly user interface GPIB and USB interface Fast test speed High precision measurement High reliability and good repeatibility Product Overview: It is the new generation network analyzer of the 41st Institute of CETC, on the basis of years of experience in the design of test and measurement instruments.

It is designed to provide fast and accurate RF measurement.

With its friendly user interface, it is suitable for production line, service workshop, educational training and R&D.

Color Display The 8.4-inch TFT color LCD provides a clear, bright, sharp display with a 640 480 pixel active display area viewable in high ambient light conditions.

Information Storage The vector network analyzer is fitted USB interface for storage of information.

Interfaces GP-IB, USB and 10/100Mbps LAN interfaces are provided as standard.

This allows the network analyzer to be integrated into ATE system and the print out of screen displays.

Technical Specifications: Frequency Frequency range: 300kHz to 9GHz Frequency resolution: 1Hz Frequency accuracy: 1ppm (typical) IF bandwidth range: 1Hz to 40KHz S Parameters measurement Directivity: 38dB Source match: 33dB Load match : 36dB Dynamic range: 105dB Reflection track: 0.06dB Transmission track: 0.05dB Maximum safe input: +30dBm Maximum DC input voltage: 24V Output power: -85dBm ~ +5dBm Input/Output Front panel Test ports : Type-N female, 50 USB interface Rear panel VGA output VGA compatible monitor LAN interface 10/100Mbps GPIB connector General Power supply: 220 10%VAC, 50Hz5% Weight: 25kg Dimensions: Depth (480mm)Width(426mm)Height (222mm) Operating temperature: 0 C +40 C Ordering Information Main unit : AV3629A Integrated vector network analyzer Standard configuration: - - - -

No.

| Designation | Quantity | 1 | power cable | 1 | 2 | USB mouse | 1 | 3 | USB keyboard | 1 | 4 | user manual | 1 | - - - - Options: - - - -

No.

| Designation | Model | Quantity | 1 | Type N calibration kit | AV20201 | 1 | 2 | 3.5mm calibration kit | AV20202 | 1 | 3 | Test cable | GORE OSZKUZKU0240 | 1 | 4 | Test cable | GORE OSZKUZKV0240 | 1 | - - - - Main Features Multi-window and multi-channel display It has 32 test windows and 64 test channels (4 traces/channel), which makes it possible to look at the four s-parameters of two port devices at the same time.

Measurement Limits This feature allows the setting of an upper and lower limits thus enabling user to identify signal easily.

WideDynamic Range It makes the test of filters with high outband depression possible.
