High Speed Neware Coin Cell Battery Tester 5v 50ma For Pulse Testing - China

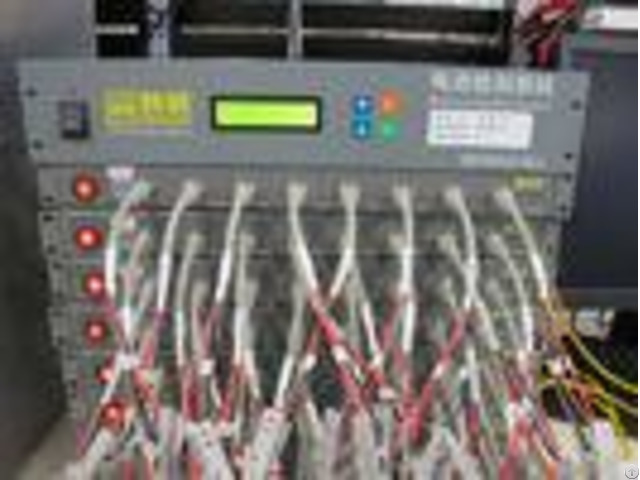

Neware Coin Cell Battery Tester Charge and Discharge Testing Instrument 5V / 50mA Brief Introduction: BTS-4000 series is based on Neware forth-generation testing system, and was introduced into the market in 2008 - It provides reliable testing solutions for all kinds of battery with hundreds of models.

The low current and voltage models of this series are often applied to coincell charge and discharge test.

Testing Range: 25mV~5V, Range 1: 25uA~5mA;Range 2: 5mA~50mA Specification: - - - - BTS-5V50mA Double Range Battery Testing System | Project Index | Parameter Index | Input Power | AC 220V 10% / 50Hz | resolution | AD: 16bitDA: 16bit | Input Resistance | 10G | Voltage | Per Channel Control Voltage Range | 25mV~5V | Minimum discharge voltage | 0V | Accuracy | 0.05% of FS | Stability | 0.05% of FS | Current | Per Channel Current Range | Range 1: 25uA~5mA Range 2: 5mA~50mA | Constant current cut-off current | 0.05% of FS | Accuracy | 0.1mA | Stability | 0.05% of FS | Power | Per Channel Output Power | 0.25 | W | Stability | 0.1% of FS | Time | Current Response Time | 20ms (0-Full Range) | Step Time Range | (365*24 )hour/step, Time Form Support 00: 00: 00(h, min: s, ms) | Data Recording | Record Condition | Timet: 100ms | VoltageU: 10mV | CurrentI: 0.1mA | Record Frequency | 10Hz | Charge | Charge Mode | Constant Current Charge, Constant Voltage Charge, Constant Current and Constant Voltage Charge, Constant Power Charge | End Conditon | Voltage, Current, Relative Time, Capacity, -V | Discharge | Discharge Mode | Constant Current Discharge, Constant Power Discharge, Constant Resistance Discharge | End Condition | Voltage, Current, Relative Time, Capacity, -V | Pulse Test | Charge | Constant Current Charge, Constant Power Charge | Discharge | Constant Current Discharge, Constant Power Discharge | Minimum Pulse Width | 500ms | Pulse Number | 32 diffirent pulse for a single step | Charge And Discharge Switch | continuous switched for a single pulse step | End Condition | Voltage, Relative Time | DCIR Test | Supported | Cycle | Loop Measure Range | 1~65535 times | Max Steps Per Loop | 254 | Nested Loop | Nested loop Function, Max Support 3 Layers | Protection | Software Protection | # Power-down Data Protection | # Off-line Testing Function | # Setting Protection Condition, Setting Parameter: Low Voltage limit, Upper Voltage limit, Low Current limit, Upper Current limit, Delay Time | Voltage and Current Testing Sample | 4-wire connecting | Noise | <85dB | Database | MySQL Database | A Means of Communication of Upper Machine | TCP/IP Protocol | Data Output | EXCEL 2003, 2010, TXT | Communication Interface | Internet Access | Server Operating System | Windows 7 | Leak Current | 0.0000005mA | Per Unit Main Channels No.

| 8 | - - - - Primary Applications: Current & Voltage Pulse Test DCIR Testing(direct current internal resistance) Capacity and Specific Capacity Cycle Life Formation & Grading Over-charge, Over-discharge Features: Auto swift Double Range, which can guarantee the accuracy of low and high current HPPC, Capacity, Cycle Life, Formation & Grading, Over-charge, Over-discharge Market-proven Testing System <=20ms Response Time to Meet Rapidly Changing Power Requirements 0.1% Full-scale Accuracy for Current & Voltage 10Hz Data Acquisition Frequency, 100Hz Optional 500ms Minimum Pulse Width More Than 1 Million Records Can Be Processed 'And', 'or', '', '' and '=' supported; Condition switches works with step accumulated time; Up to 5 condition switches for each step; Go to break supported.
