Higher Measuring Accuracy Vector Network Analyzer With 10.4 Inch LCD Product Overview: AV3656A Vector Network Analyzer is a new generation produced by the 41st Institute of CETC based on many years of scientific research and production experience in vector network analyzer and has powerful measurement functions, which can complete vector network analysis in the field of wireless communications, cable TV, and automotive electronics, etc., and can be used for performance measurement of filter, amplifier, antenna, cable, and cable television sub connectors, etc.

radio frequency components.

It's frequency range is100kHz 3GHz .

For accurate measurement of strong suppression filter, the Vector Network Analyzer has 120dB dynamic range.

In addition, it has 10.4 inch true color high-resolution LCD with touch sceen function.

Double language can meet different countries' need, everyone will choose what he likes.

Main Features: 1 - Capable of completing time domain analysis 2 - With LAN, USB, GPIB and VGA display interface 3 - Available in multiple display formats such as amplitude, phase, group delay, Smith chart and popular coordinates and standing-wave ratio(SWR), etc 4 - Windows XP operating system.

Technical Specifications: Main technical indicators Main Indicators of AV3656A Vector Network Analyzer Indicator test conditions: warm-up for more than 90 minutes, at ambient temperature: 23 3 - After calibration, the temperature change is less than 1 - Calibration kit: AV20205 N-type calibration kit.

Calibration cable: GORE OSZKUZKU0240 - - - - Frequency range | 100kHz 3GHz | Frequency resolution | 1Hz | Frequency accuracy | 510-6 | Port output power | -40+10dBm | IF bandwidth | 1Hz100kHz | System dynamic range | IF bandwidth 10Hz | 95dB (0.110MHz) | 120dB (10MHz3GHz) | IF bandwidth 3kHz | 70dB (0.110MHz) | 90dB (10MHz3GHz) | Test port specifications | Frequency range | 100k10MHz | 10M3GHz | Effective directivity (dB) | 49 | 46 | Effective source matching (dB) | 44 | 40 | Active load matching (dB) | 49 | 46 | Reflection track | 0.020 dB | Transmission track | 0.020 dB | Display | 800600, 10.4 inch true color LCD | Interface | GPIB, USB interface, LAN interface, VGA display interface | Power supply | AC 220V10%, 50Hz5%; | Dimensions | 427mm223mm300mm | Weight | 18kg | Environmental adaptability | Comply with the requirements of clause 4.6.5.1in GJB3947-2009 | Operating temperature range: 0 +40 | Storage temperature range: -20 +70 | - - - - Ordering Information: (1)Main unit: AV3656A Vector Network Analyzer (2)Standard configuration: - - - - No.

| Description | Qty | 1 | Power Cord | 1 | 2 | USB Mouse | 1 | 3 | USB Keyboard | 1 | 4 | Users Guide | 2 | - - - - Option - - - - No.

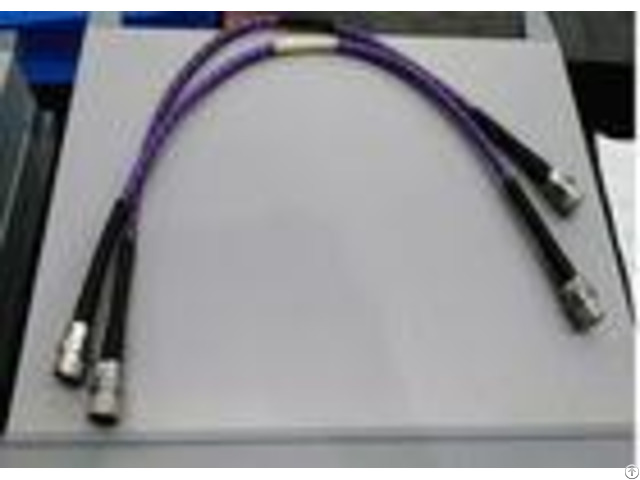

| Description | Model | Qty | 1 | N-type calibration kit | AV20205 | 1 | 2 | 3.5mm calibration kit | AV20202 | 1 | 3 | N-type testing cable | GORE OSZKUZKU0240 | 1 | 4 | N-type testing cable | GORE OSZKUZKV0240 | 1 | 5 | N-type 75 calibration kit | AV20204 | 1 | 6 | N-type 75 testing cable | 24-0800-51M1-51M1 | 1 | 7 | 75 port impedance | AV3656A | 1 | 8 | Economic type testing cable | ET06-NMSM-0.8M | 1 | 9 | Economic type testing cable | ET06-NMNF-0.8M | 1 | 10 | Economic type testing cable | ET06-NMNM-0.8M | 1 | 11 | Economic type phase-compensated testing cable | 197C-NMSM-0.8M | 1 | 12 | Economic type phase-compensated testing cable | 197C-NMNF-0.8M | 1 | 13 | Economic type phase-compensated testing cable | 197C-NMNM-0.8M | 1 | - - - - Abundant test functions AV3656A Vector Network Analyzer has powerful testing capabilities: The frequency ofset mode is for mixer measurement.

Filter automatic statistics collection function renders clear display of filter loss, ripple and suppression, facilitating hopping filter commissioning.

Limit test function is develped with a large number of test options for different users, so that each user can test in accordance with needs.
