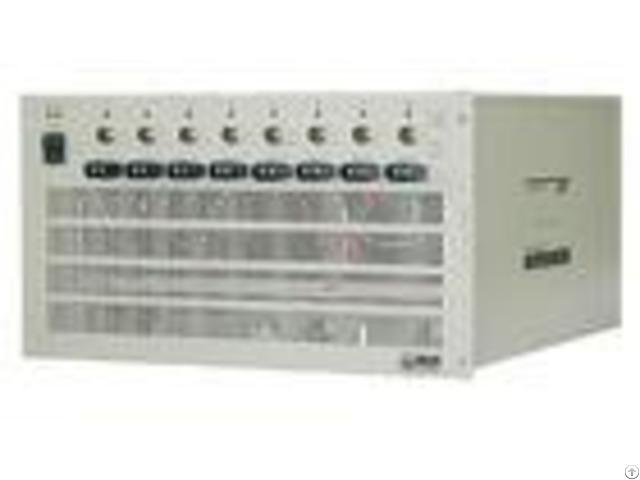

Multifunction Battery Pack Tester 8 Channels For Cycle Life And Capacity Testing - China

Neware 8 Channels Battery Pack Tester for Cycle Life and Capacity Testing Since 1998, Neware has been committed to providing world-class battery testing equipment with large power output and high accuracy.

We adopt SAP as our ERP system and comply with ISO9000 standard (ISO9001: 2008, Register No: 0409035).

We supply reliable and flexible battery testing equipment for more than 19000 customers ranging from battery manufacturing factories to R&D institutes all around the world.

Neware 8 Channels Battery Pack Tester for Cycle Life and Capacity Testing Cycle tests provide information about the battery such as its internal chemistry, capacity, number of useable cycles, and lifetime.

In production testing, a discharge/ charge cycle is often performed to verify battery specifications and to ensure it is not defective.

Primary Applications: # # Current & Voltage # Pulse Test # DCIR Testing(direct current internal resistance) # Capacity and Specific Capacity # Cycle Life # Formation & Grading # Over-charge, Over-discharge Cycle tests provide information about the battery such as its internal chemistry, capacity, number of useable cycles, and lifetime.

In production testing, a discharge/ charge cycle is often performed to verify battery specifications and to ensure it is not defective.

CT-4008-20V6A-A Current and Voltage Specifications: - - - - Output Voltage | CV Output Range | 0.1V~20V | Min Discharge Voltage | 2.5V | Accuracy | 0.1% of FS | Stability | 0.1% of FS | Output Current | Output Range | 0.03A~6A | Accuracy | 0.1% of FS | CV Cut-off Current | 0.012A | Stability | 0.1% of FS | Output Power | Output Power | 120W/channel | Stability | 0.2% of FS | - - - - BTS 4000 - Advanced Testing System HPPC, Capacity, Cycle Life, Formation & Grading, Over-charge, Over-discharge Market-proven Testing System <=20ms Response Time to Meet Rapidly Changing Power Requirements 0.1% Full-scale Accuracy for Current & Voltage 10Hz Data Acquisition Frequency, 100Hz Optional 500ms Minimum Pulse Width More Than 1 Million Records Can Be Processed - - - - Pulse Mode | Charge Mode | CC, CP | Discharge Mode | CC, CP | Min Pulse Width | 500ms | Max Pulse Number | 32 pulse in a single step | Charge And Discharge Switch | Continuous switched for charging and discharging in a single pulse step | End Condition | Voltage, Relative time | DCR Test | Supported | Cycle | Max Cycle | 1~65535 | Max Work Step | 254 | Max Cycle Nest | 3 | Protection | Power-off data protection | Off-line operation mode | Customer-defined protection conditions: | Anti-reverse Protection | - - - - Battery Connections: Customers may care about the connection ways from Neware equipment to the battery module, we provide several clamps for you to choose.
