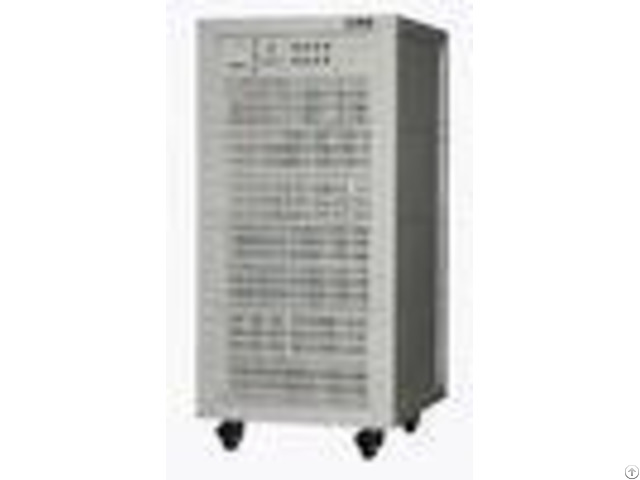

Neware Battery Tester 8 Channel Charge And Discharge Cycle Life Capacity Testing 10v 20a - China

8 Channel Battery Capacity Tester 10V / 20A Cycle Life Testing System CT-4008-10V20A-NA: Up to 20A, up to 10V.

Rate, DCIR, Pulse test.

Discharge Min Voltage can be customerized to 0 - The model is CT-4008-10V20A-NFA Temperature measurement auxiliary can be intergrated.

CT - 4008 - 10V20A - NA - - - - Series | Channel | Range | N: Network | T: Temperature | A: Anti-reverse | - - - - CT-4008-10V20A-NA Specifications: - - - - AC Input | AC 220V 10% / 50Hz | Input Power | 2430 | W | Resolution | AD: 16bitDA: 16bit | Input Impedence | 1M | Output Voltage | CV Output Range | 0.05V~10V | Min Discharge Voltage | 2.5V | Accuracy | 0.1% of FS | Stability | 0.1% of FS | Output Current | Output Range | 0.1A~20A | Accuracy | 0.1% of FS | CV Cut-off Current | 0.04A | Stability | 0.1% of FS | Output Power | Output Power | 200W/channel | Stability | 0.2% of FS | Time | Response Time | Max current response time<20ms | Working Step Time | (365*24)hour/step; Time format: 00: 00: 00.000(h, min, s, ms) | Record | Data Record Conditions | Min data record t: 100ms | Min data record V : 20mV | Min data record I: 40mA | Frequency | 10Hz | Charge | Charge Mode | CC, CV, CCCV, CP | End Condition | Voltage, Current, t, Capacity, -V | Discharge | Discharge Mode | CC, CP, CR | End Condition | Voltage, Current, t, Capacity, -V | Pulse Mode | Charge Mode | CC, CP | Discharge Mode | CC, CP | Min Pulse Width | 500ms | Max Pulse Number | 32 pulse in a single step | Charge And Discharge Switch | Continuous switched for charging and discharging in a single pulse step | End Condition | Voltage, Relative time | DCR Test | Supported | Cycle | Max Cycle | 1~65535 | Max Work Step | 254 | Max Cycle Nest | 3 | Protection | Power-off data protection | Off-line operation mode | Customer-defined protection conditions: | Anti-reverse Protection | - - - - Primary Applications: # # Current & Voltage # Pulse Test # Direct Current Internal Resistance) # Capacity and Specific Capacity # Battery Cycle Life # Formation & Grading # Over-charge, Over-discharge Performance Features: # HPPC, Capacity, Cycle Life, Formation & Grading, Over-charge, Over-discharge # Market-proven Testing System # <=20ms Response Time to Meet Rapidly Changing Power Requirements # 0.1% Full-scale Accuracy for Current & Voltage # 10Hz Data Acquisition Frequency, 100Hz Optional # 500ms Minimum Pulse Width # More Than 1 Million Records Can Be Processed # 'And', 'or', '', '' and '=' supported; # Condition switches works with step accumulated time; # Up to 5 condition switches for each step; # Go to break supported.

Neware Provide thousands of models battery testing system, but how to choose a perfect match model? pls confirm the following items: # # Maximum charge discharge current; # Maximum charge discharge voltage; # Minimum discharging voltage; # If the temperature & voltage inside the single cells need to test? ( we can provide auxiliary channels) Battery Connections: Customers may care about the connection ways from Neware equipment to the battery module, we provide several clamps for you to choose.
