Portable 10mhz Microwave Spectrum Analyzer High Measurement Speed - China

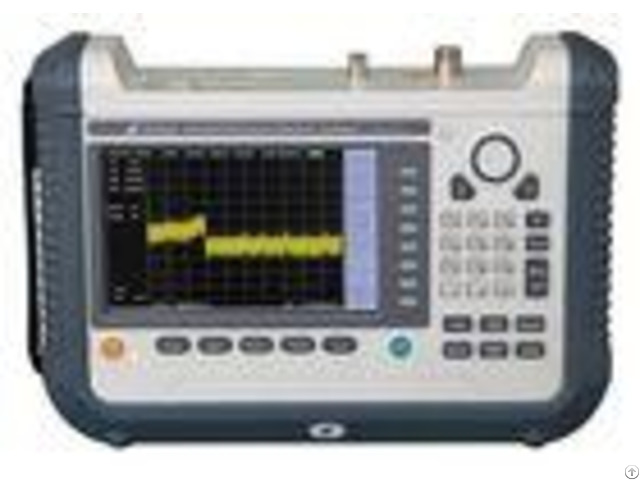

AV4023 Portable Microwave Spectrum Analyzer Product Overview: AV4023 Portable Microwave Spectrum Analyzer is the new generation portable microwave spectrum analyzer developed by our 41st institute using broadband microwave component integration design technology, microwave multilayer PCB design technology, efficient voltage transformation system design technology and multi-band sweep & individual thread processing technology.

Compared with the last generation product, its frequency range increases by 5 times, display average noise level decreases by 20dB, single sideband phase noise decreases by 20dB and measuring speed increases by 4 times, featured by broad frequency band, high performance index, small size, light weight, flexible power supply and easy maneuvering, suitable for field service.

Main Features: # High measurement speed # Abundant measurement functions # Support both linear sweep and list sweep # Chinese/English menu for easy use # Available in battery power, convenient for field service Technical Specifications: - - - - Model | AV4023 | Frequency Range | 1MHz ~ 18GHz | Reference Frequency | Nominal frequency: 10MHz Aging rate: 110-8/day, 110-6/year Temperature stability: 110-6 (0~50, relative to 25) | Frequency Readout Accuracy | Frequency readout accuracy(Frequency readout Frequency reference error +5%Frequency span+25%Resolution bandwidth) | Sweep Width | 1MHz~18GHz or 0Hz | Resolution Bandwidth | 1Hz ~ 3MHz (step by 1, 3, 10) | Video Bandwidth | 1Hz ~ 3MHz (step by 1, 3, 10) | Noise Sideband | <-80dBc/Hz (carrier of 18GHz, 1kHz offset) <-89dBc/Hz (carrier of 18GHz, 10kHz, 20kHz, 30kHz offset) <-91dBc/Hz (carrier of 18GHz, 100kHz offset) <-100dBc/Hz (carrier of 18GHz, 1MHz offset) | Residential Response | -82dBm (the preamplifier is off) -95dBm (the preamplifier is on, 10MHz ~ 4GHz) | Display Average Noise Level | -153dBm (10MHz ~ 4GHz, the preamplifier is on) -133dBm (10MHz ~ 7GHz, the preamplifier is off) -127dBm (7GHz ~ 18GHz) | 1dB Compression Point | -5dBm | Second-order Harmonic Distortion | -43dBc (50MHz ~ 4GHz) -58dBc (4GHz ~ 18GHz) | Third-order Intermodulation | 4dBm typical (50MHz ~ 4GHz) 8dBm typical (4GHz ~ 18GHz) | Sweep Time | 1ms ~ 100s (at zero-span) 100ms ~ 100s (at non zero-span) | Overall-level Uncertainty | 2.7dB (0~ 50, preheated for 30m) | Input Attenuation Range | 0 ~ 30dB, 10dB step | Maximum Safety Input Level | +27dBm | Standing Wave Ratio of Input Port Voltage | 1.8: 1 (<13GHz, typical) 2.0: 1 (13GHz~18GHz, typical) | Power Consumption | <28W | Power Supply Mode | DC, rechargeable battery | Battery Service Life | 2 hours | Input Interface | N-female, 50 resistance | Dimension | Length x width x depth=313mm x 211mm x 87mm | Weight | Lighter than 7kg | - - - - Abundant measurement functions In addition to spectrum measurement function, it also has the functions of occupied bandwidth measurement, channel power measurement, adjacent channel power measurement, etc.
